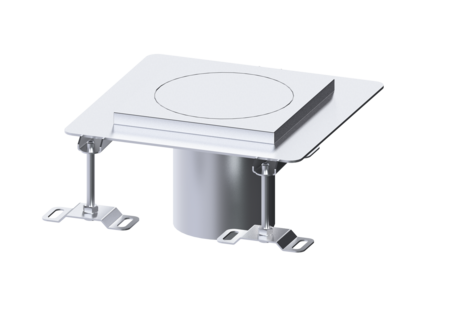

Upper section 150x150 gastight hygienic

Back to table of variants PDF product data sheet

KESSEL, surface, length 150 mm, width 150 mm, type of cover Hygiene upper section, locking unlocked, Cover Stainless steel 14301

Item no. 59012
GTIN 4026092103463
Price group 70

    Variant System: 125 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics ATEX: no Dimensions Net weight: 6 kg Gross weight: 6,5 kg Length: 250 mm Width: 250 mm Height: 100 mm Packaging dimension: length: 250 mm Packaging dimension: width: 250 mm Packaging dimension: height: 100 mm Coverage features Type of cover: Hygiene upper section Cover material: Stainless steel 14301 Height of cover: 15 mm Locking: unlocked Load class: L 15 (EN 1253-1) Tightness: gastight and liquid-tight Rim width: 150 mm Rim length: 150 mm Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Type of cover (abdeckungsart): Hygiene upper section
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Locking (verriegelung): unlocked
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Adhesive flange (suitable for moisture barriers)
