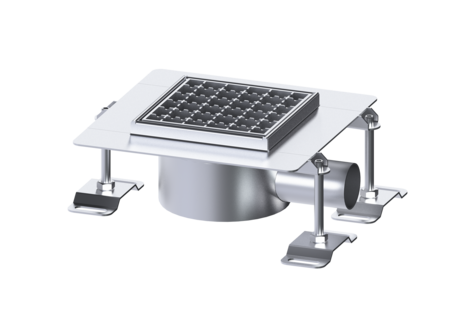

Ferrofix renovation drain

Gl fl., DN 50, horizontal, slot grat.

KESSEL Ferrofix renovation drain, nominal size (DN) 50, socket lateral, cover length 138 mm, waterproofing layer upper section by Adhesive flange (suitable for moisture barriers), type of cover Slotted cover

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • ideal for the food industry
  • catering kitchens and swimming pools
Item no. 59315
GTIN 4026092103029
Price group 70

    Ferrofix renovation drain Gl fl., DN 50, horizontal, slot grat.
    The Ferrofix stainless steel renovation drain is equipped with a horizontal outlet DN 50 as well as a removable odour trap. Variant System: 125 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Sealing water height: 50 mm Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Dimensions Net weight: 4 kg Gross weight: 4,3 kg Max. design height: 107 mm Length: 273 mm Width: 248 mm Height: 107 mm Packaging dimension: length: 270 mm Packaging dimension: width: 250 mm Packaging dimension: height: 110 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Locking: unlocked Load class: L 15 (EN 1253-1) Rim width: 148 mm Rim length: 148 mm Upper section material: Stainless steel 14301 Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): Stainless steel 14301
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Socket version (stutzen_ausfuehrung): lateral
    • Type of cover (abdeckungsart): Slotted cover
    • Length (laenge): 273  mm
    • Width (breite): 248  mm
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • (oberflaeche):
