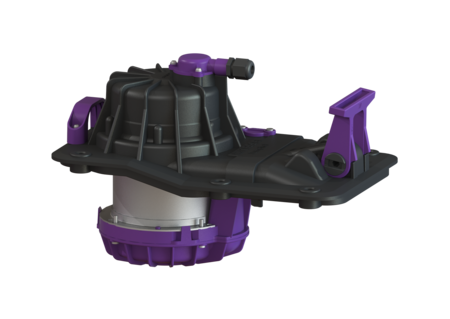

Replacement pump, Pumpfix F
DN 100/125, 5 m cable
Replacement pump with cover, motor, impeller, blades and pump housing for faecal wastewater
| Item no. | 680040 |
|---|---|
| GTIN | 4026092062333 |
| Price group | 90 |
Replacement pump, Pumpfix F DN 100/125, 5 m cable
Replacement pump with cover, motor, impeller, blades and pump housing for faecal wastewater Variant Pump control: Control unit General characteristics Standard: EN 12050-1 Type of wastewater: with sewage Dimensions Net weight: 13,59 kg Gross weight: 15,14 kg Packaging dimension: length: 286 mm Packaging dimension: width: 286 mm Packaging dimension: height: 300 mm Pumping device Pump: SPZ 1000 Weight: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 5,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,7 kW Operating mode: S3 - 30 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Rated current: 5,2 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Type of wastewater (abwasserart_de):
with sewage
