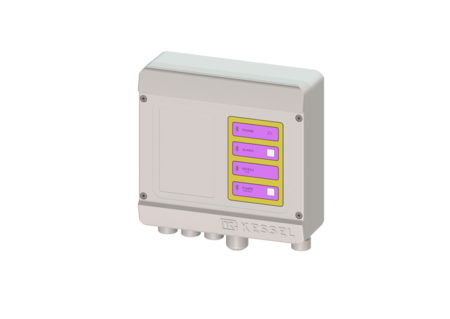

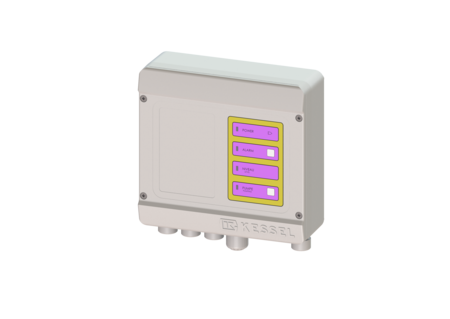

Standard control unit
Mono, 230 V, with capacitor
Control unit with optical and acoustic warning, suitable for Aqualift F Mono lifting stations. The control unit is solely compatible with the immersion pipe art. no. 680055.
| Item no. | 680062 |
|---|---|
| GTIN | 4026092062555 |
| Price group | 90 |
Standard control unit Mono, 230 V, with capacitor
Control unit with optical and acoustic warning, suitable for Aqualift F Mono lifting stations. The control unit is solely compatible with the immersion pipe art. no. 680055. Variant Series: ab 11/2009 General characteristics Colour: grey Dimensions Net weight: 1,57 kg Gross weight: 1,92 kg Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Packaging dimension: length: 390 mm Pumping device Type of fuse required (electrical protection): C 16 A A Control Protection class probe: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 2,5 m Potential-free contact: optional GSM interface: no USB interface: no Log book function: no Multi-line display: no Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): C 16 A A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Declaration of Conformity |
|---|
