Pump drive SPF 1400
230 V, S1, 5 m cable, without capacitor

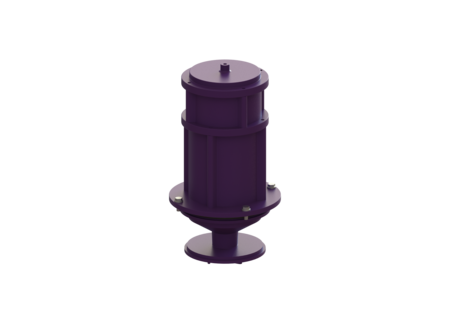

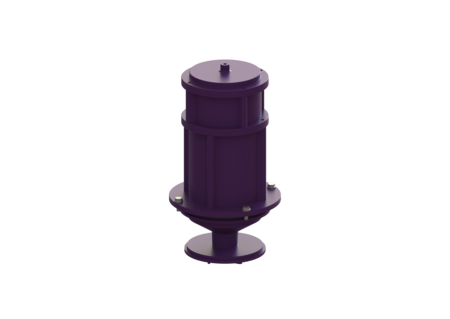

Pump drive with multi-vane impeller for faecal wastewater
| Item no. | 680095 |
|---|---|
| GTIN | 4026092062883 |
| Price group | 90 |
Pump drive SPF 1400 230 V, S1, 5 m cable, without capacitor
Pump drive with multi-vane impeller for faecal wastewater Variant Series: ab 04/2013 General characteristics Type of wastewater: with sewage Dimensions Net weight: 28 kg Gross weight: 31 kg Packaging dimension: width: 350 mm Packaging dimension: height: 380 mm Packaging dimension: length: 585 mm Pumping device Pump control: SPF 1400 Connection type: Direct connection Rated current: 7,3 A Length of mains cable for pump: 5 m Self-diagnosis system (SDS): I T-DSC: yes Protection class control unit: IP 68 (3m/48h) DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 7 m Speed: 1370 U/min Power P1: 1,6 kW Power P2: 1,1 kW Operating mode: S1 Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Direct connection
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Type of wastewater (abwasserart_de):
with sewage
