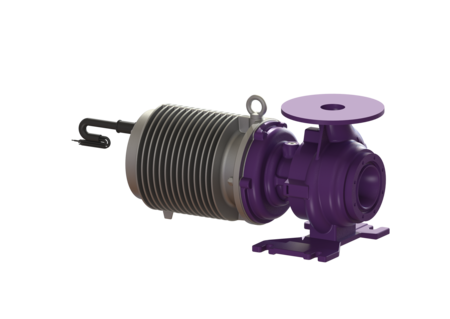

Replacement pump SPF 400 KE
4.0 kW
Homogeniser pump for grease separators
| Item no. | 680331 |
|---|---|
| GTIN | 4026092067895 |
| Price group | 90 |
Replacement pump SPF 400 KE 4.0 kW
Homogeniser pump for grease separators Variant Pump control: Control unit Dimensions Net weight: 42,4 kg Gross weight: 42,4 kg Packaging dimension: length: 600 mm Packaging dimension: width: 260 mm Packaging dimension: height: 410 mm Pumping device Pump: SPF 400 KE Weight, pump: 42,4 kg Connection type: Direct connection Operating voltage: 400 V Mains frequency: 50 Hz Rated current: 7,9 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 16 m Speed: 2900 U/min Power P1: 4,2 kW Power P2: 3,5 kW Operating mode: S2 - 50 min. Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Length of mains cable for pump: 5 m Control Connection type: Direct connection Type of fuse required (electrical protection): Fuse protection through control unit 400 V
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates |
