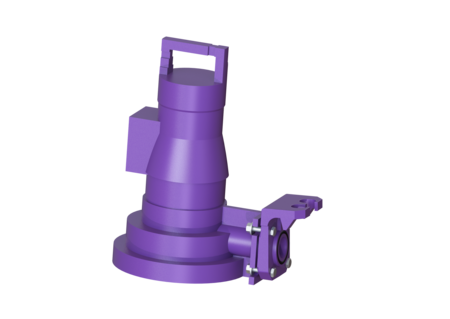

Replacement pump TPF 154
400 V, 1.9 kW
Replacement pump with macerator for faecal wastewater, includes connection adapter for TPF154
| Item no. | 680411 |
|---|---|
| GTIN | 4026092069660 |
| Price group | 90 |
Replacement pump TPF 154 400 V, 1.9 kW
Replacement pump with macerator for faecal wastewater, includes connection adapter for TPF154 Variant Series: bis 10/2006 General characteristics Standard: EN 12050-1 Type of wastewater: with sewage Dimensions Net weight: 53,9 kg Gross weight: 53,9 kg Packaging dimension: length: 420 mm Packaging dimension: width: 300 mm Packaging dimension: height: 500 mm Pumping device Pump: TPF 154 Weight, pump: 47 kg Connection type: Direct connection Operating voltage: 400 V Mains frequency: 50 Hz Rated current: 4,5 A Protection class: I Insulation class: F Cos phi - power factor: 0,83 Protection class (pump): IP 68 Temperature monitoring: controlled via control unit Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 32 m Speed: 2885 U/min Power P1: 2,6 kW Power P2: 1,9 kW Operating mode: S1 Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Length of mains cable for pump: 10 m Control Connection type: Direct connection Type of fuse required (electrical protection): Fuse protection through control unit 400 V
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- ATEX (atex):
yes
- Type of wastewater (abwasserart_de):
with sewage
