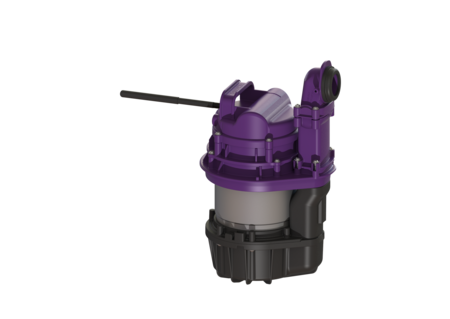

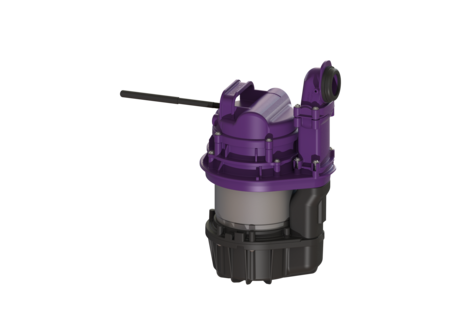

Replacement pump GTF 1300
230 V, for grease separator SE
Replacement pump GTF 1300 for grease separator SE
| Item no. | 680520 |
|---|---|
| GTIN | 4026092074718 |
| Price group | 90 |
Replacement pump GTF 1300 230 V, for grease separator SE
Replacement pump GTF 1300 for grease separator SE Variant Pump control: Control unit General characteristics Cable length: 5 m Dimensions Net weight: 8,8 kg Gross weight: 10,3 kg Packaging dimension: length: 290 mm Packaging dimension: width: 260 mm Packaging dimension: height: 300 mm Pumping device Pump: GTF 1300 Number of pumps: 1 Weight, pump: 10 kg Connection type: Direct connection Operating voltage: 230 V Mains frequency: 50 Hz Protection class: I Insulation class: F Cos phi - power factor: 0,98 Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S2 Type of pump connection cable: H07RN-F 3G 1.5 mm² Length of mains cable for pump: 5 m Rated current: 6,2 A Control Connection type: Direct connection
