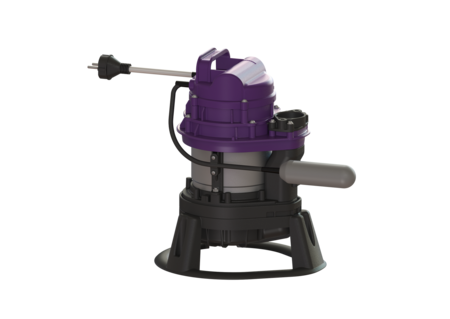

Replacement pump Aquadive GTF1200

with float switch, 10 m

PDF product data sheet

Replacement pump, Aquadive GTF 1200 with floater for pumping station

Item no. 680594
GTIN 4026092078808
Price group 90

Replacement pump Aquadive GTF1200 with float switch, 10 m
Replacement pump, Aquadive GTF 1200 with floater for pumping station Version: Pump control: Float switch Pumping device: Pump: GTF 1200 Max. pumping capacity: 15.5 m3/h Max. pumping height: 9 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S3 - 50 % Power P1: 1,400 kW Power P2: 840 kW Speed: 2,650 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 35 °C Connection type: Schuko (earthed contact) 2-pin Length of mains cable for pump: 10 m Rated current: 6.2 A Protection class (pump): IP 68 Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Cos phi - power factor: 0.98 Insulation class: F Cable length: 10 m
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Pump stand for pumping stations 680362
Spiral housing for passage 30 mm 680363
Impeller for passage 30 mm 680366
  • Net weight (ATTR-A3A): 11.4  KGM
  • Gross weight (ATTR-A3B): 11.4  KGM
  • Pump control (ATTR-134): Float switch
  • Cable length (ATTR-190): 10  MTR
  • Declaration of conformity (ATTR-303): 009-097
  • Pump (ATTR-4): GTF 1200
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Max. permissible switching frequency (ATTR-162): 20  1PH
  • Operating mode (ATTR-10): S3 - 50 %
  • Power P1 (ATTR-F4): 1,400  KWT
  • Power P2 (ATTR-F5): 840  KWT
  • Speed (ATTR-F2): 2,650  UMIN
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 6.2  AMP
  • Max. pumping capacity (ATTR-F7): 15.5  MQH
  • Max. pumping height (ATTR-F8): 9  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 35  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): Schuko (earthed contact) 2-pin
  • Protection class (pump) (ATTR-125): IP 68
  • Length of mains cable for pump (ATTR-11): 10  MTR
  • Cos phi - power factor (ATTR-192): 1.0
  • Insulation class (ATTR-193): F
  • Expected service life (hours of operation) (ATTR-194): 5,000  HUR
  • Expected service life (number of switching cycles) (ATTR-195): 150,000
  • Country of origin (ATTR-322): DE
  • Brand (M-ATTR-001): KESSEL
