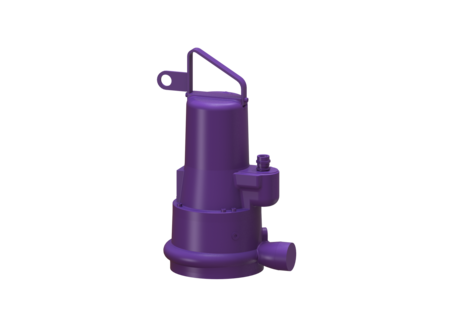

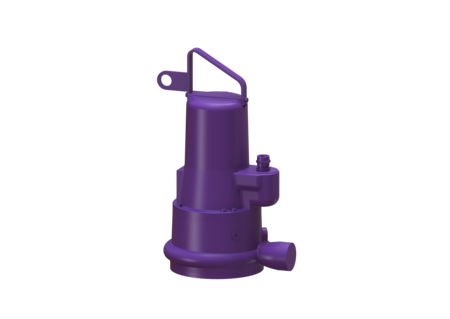

Replacem. pump Aquadive STZ 2500
without float switch, 10 m, ATEX
Replacement pump, Aquadive, STZ 2500, ATEX, without float, for pumping station, wet installation
Item no. | 680605 |
---|---|
GTIN | 4026092078495 |
Price group | 90 |
Replacem. pump Aquadive STZ 2500 without float switch, 10 m, ATEX
Replacement pump, Aquadive, STZ 2500, ATEX, without float, for pumping station, wet installation Variant Pump control: Control unit General characteristics Cable length: 10 m ATEX: yes Dimensions Net weight: 37 kg Gross weight: 39 kg Packaging dimension: length: 380 mm Packaging dimension: width: 260 mm Packaging dimension: height: 600 mm Pumping device Pump: STZ 2500 Weight, pump: 33 kg Connection type: Direct connection Operating voltage: 400 V Mains frequency: 50 Hz Rated current: 4,4 A Protection class: I Insulation class: H Cos phi - power factor: 0,83 Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 33 m Speed: 2900 U/min Power P1: 2,5 kW Power P2: 1,9 kW Operating mode: S1 Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN8-F 6G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Control Connection type: Direct connection Type of fuse required (electrical protection): Fuse protection through control unit 400 V
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Replacement chain pumping statio. Stainless steel, length 2 m | 680528 | Show | |
Replacement chain pumping statio. Stainless steel, length 3 m | 680529 | Show | |
Replacement chain for pump statns Stainless steel, length 4 m | 680530 | Show | |
Replacement chain, pumping stat. Stainless steel, length 5 m | 680531 | Show |
Title | Item no. |
---|
Manuals | |
---|---|
Test Reports and Certificates |
- ATEX (atex): yes
