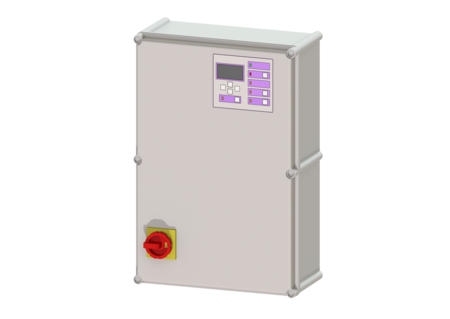

Control unit, Comfort Plus SD

Mono/Duo, 400 V, (2x)17.0-23.0 A

680639
PDF product data sheet

User-friendly control unit with Zener barrier

Item no. 680639
GTIN 4026092081938
Price group 90

    Control unit, Comfort Plus SD Mono/Duo, 400 V, (2x)17.0-23.0 A
    User-friendly control unit with Zener barrier General characteristics System type: Duo Dimensions Net weight: 15 kg Gross weight: 15 kg Packaging dimension: length: 640 mm Packaging dimension: width: 463 mm Packaging dimension: height: 270 mm Pumping device Connection type: Direct connection Type of fuse required (electrical protection): Rated current: 17 - 23 A Control Control unit: Comfort Plus SD Motor protection switch: yes Standby power: 7 W Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Control unit (schaltgeraet): Comfort Plus SD
