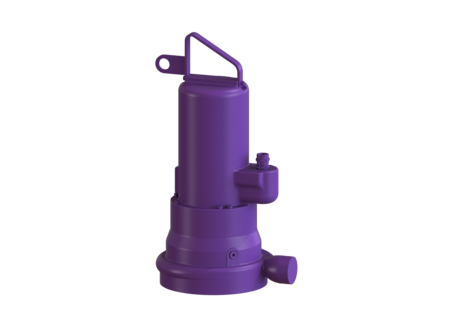

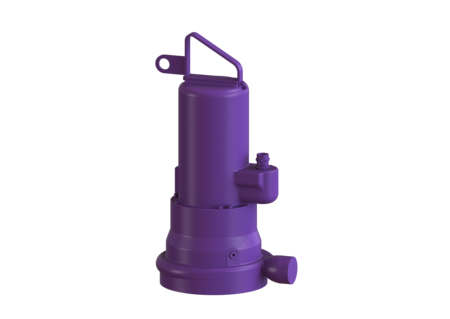

Replacement pump STZ 5200
without float switch, ATEX
Replacement pump without float switch for pumping station, wet installation
| Item no. | 680704 |
|---|---|
| GTIN | 4026092081990 |
| Price group | 90 |
Replacement pump STZ 5200 without float switch, ATEX
Replacement pump without float switch for pumping station, wet installation Variant Pump control: Control unit General characteristics Type of wastewater: for wastewater with and without sewage ATEX: yes Dimensions Net weight: 58 kg Gross weight: 60 kg Packaging dimension: length: 380 mm Packaging dimension: width: 260 mm Packaging dimension: height: 600 mm Pumping device Pump: STZ 5200 Weight, pump: 56 kg Connection type: Direct connection Rated current: 8,7 A Protection class: I Insulation class: H Cos phi - power factor: 0,89 Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 52 m Speed: 2840 U/min Power P1: 5,2 kW Power P2: 4,4 kW Operating mode: S1 Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN8-F PLU 10G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Control Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Rated current: 8,7 A Type of fuse required (electrical protection): Fuse protection through control unit 400 V
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Replacement chain pumping statio. Stainless steel, length 2 m | 680528 | Show |
| Replacement chain pumping statio. Stainless steel, length 3 m | 680529 | Show |
| Replacement chain for pump statns Stainless steel, length 4 m | 680530 | Show |
| Replacement chain, pumping stat. Stainless steel, length 5 m | 680531 | Show |
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates |
- ATEX (atex):
yes
- Type of wastewater (abwasserart_de):
for wastewater with and without sewage
