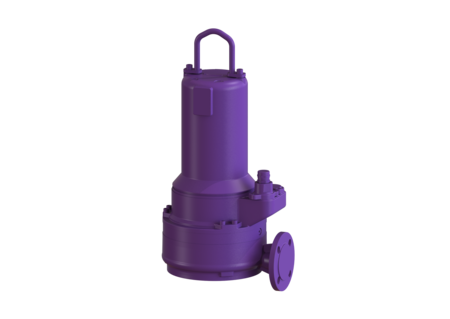

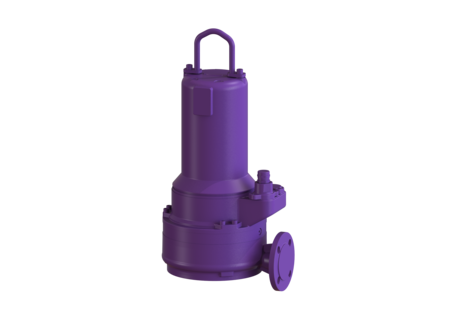

Replacement pump STZ 11000
without float switch, ATEX

Replacement pump without float switch for pumping station, wet installation
Item no. | 680706 |
---|---|
GTIN | 4026092082010 |
Price group | 90 |
Replacement pump STZ 11000 without float switch, ATEX
Replacement pump without float switch for pumping station, wet installation Variant Pump control: Control unit General characteristics Type of wastewater: for wastewater with and without sewage Cable length: 10 m Dimensions Net weight: 113 kg Gross weight: 121 kg Packaging dimension: length: 550 mm Packaging dimension: width: 450 mm Packaging dimension: height: 900 mm Pumping device Pump: STZ 11000 Weight, pump: 107 kg Connection type: Direct connection Operating voltage: 400 V Mains frequency: 50 Hz Rated current: 18,8 A Protection class: I Insulation class: H Cos phi - power factor: 0,89 Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 68 m Speed: 2900 U/min Power P1: 11 kW Power P2: 9,5 kW Operating mode: S1 Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN8-F PLU 10G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Control Connection type: Direct connection Type of fuse required (electrical protection): Fuse protection through control unit 400 V
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
![]() | Replacement chain pumping statio. Stainless steel, length 2 m | 680528 | Show |
![]() | Replacement chain pumping statio. Stainless steel, length 3 m | 680529 | Show |
![]() | Replacement chain for pump statns Stainless steel, length 4 m | 680530 | Show |
![]() | Replacement chain, pumping stat. Stainless steel, length 5 m | 680531 | Show |
Title | Item no. |
---|
Manuals | |
---|---|
Test Reports and Certificates |
- ATEX (atex):
yes
- Type of wastewater (abwasserart_de):
for wastewater with and without sewage
