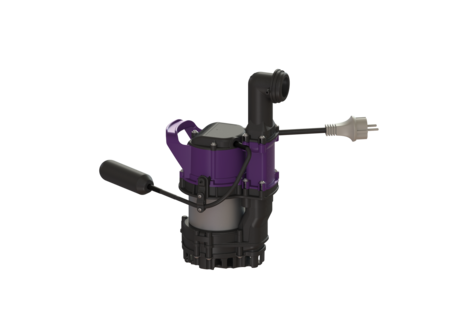

Replacement pump GTF 500

resistant, with float switch

PDF product data sheet

Replacement pump with float switch with connection to pressure pipe R 1 1/4", vertical pressure pipe connection, integrated low level suction and removable intake cage and carry handle. Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems.

Item no. 680765
GTIN 4026092085950
Price group 90

Replacement pump GTF 500 resistant, with float switch
Replacement pump with float switch with connection to pressure pipe R 1 1/4", vertical pressure pipe connection, integrated low level suction and removable intake cage and carry handle. Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems. Pumping device: Pump: GTF 500 Max. pumping capacity: 10 m3/h Max. pumping height: 8 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S1 Power P1: 500 kW Power P2: 360 kW Length of mains cable for pump: 10 m Rated current: 2.5 A Protection class (pump): IP 68 run dry safe: yes
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Catalog Page
  • Net weight (ATTR-A3A): 5.5  KGM
  • Gross weight (ATTR-A3B): 6  KGM
  • Pump (ATTR-4): GTF 500
  • Operating mode (ATTR-10): S1
  • Power P1 (ATTR-F4): 500  WTT
  • Power P2 (ATTR-F5): 360  WTT
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 2.5  AMP
  • Max. pumping capacity (ATTR-F7): 10  MQH
  • Max. pumping height (ATTR-F8): 8  MTR
  • Protection class (pump) (ATTR-125): IP 68
  • Length of mains cable for pump (ATTR-11): 10  MTR
  • run dry safe (ATTR-137): yes
  • Brand (M-ATTR-001): KESSEL
  • Country of origin (ATTR-322): DE
