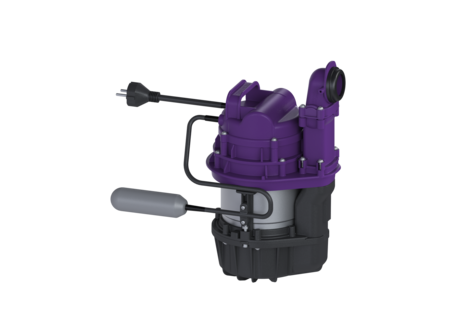

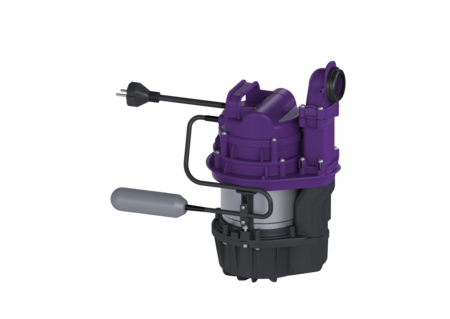

Replacement pump GTF 1200
with float switch
Replacement pump with float switch for the Aqualift S Compact lifting station for floor slab installation.
| Item no. | 680766 |
|---|---|
| GTIN | 4026092086223 |
| Price group | 90 |
Replacement pump GTF 1200 with float switch
Replacement pump with float switch for the Aqualift S Compact lifting station for floor slab installation. Dimensions Net weight: 10,5 kg Gross weight: 11,5 kg Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Pumping device Pump: GTF 1200 Operating voltage: 230 V Mains frequency: 50 Hz Run dry safe: yes Protection class (pump): IP 68 Max. pumping height: 9 m Power P1: 1,27 kW Power P2: 0,73 kW Operating mode: S3 - 50 % Length of mains cable for pump: 10 m Rated current: 5,6 A Control Operating voltage: 230 V
