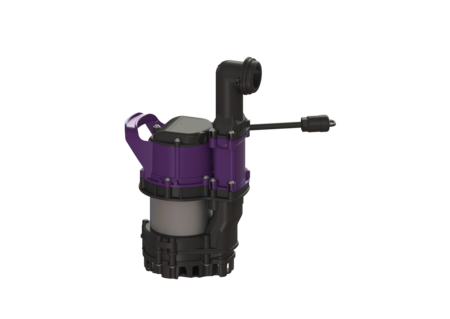

Replacement pump GTF 500

without float switch

Replacement pump without float switch with connection to pressure pipe R 1 1/4", vertical pressure pipe connection, integrated low level suction and removable intake cage and carry handle.

Item no. 680773
GTIN 4026092085110
Price group 90

Replacement pump GTF 500 without float switch
Replacement pump without float switch with connection to pressure pipe R 1 1/4", vertical pressure pipe connection, integrated low level suction and removable intake cage and carry handle. Dimensions Net weight: 5,12 kg Gross weight: 6 kg Packaging dimension: width: 241 mm Packaging dimension: height: 382 mm Packaging dimension: length: 276 mm Pumping device Pump control: GTF 500 Rated current: 2,5 A Length of mains cable for pump: 10 m T-DSC: yes Protection class control unit: IP 68 Max. pumping height: 8 m Power P1: 0,5 kW Power P2: 0,36 kW Operating mode: S1 Control Mains frequency: 50 Hz Operating voltage: 230 V
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Multi-vane impeller for GTF 500 680767 Show
Spiral housing for GTF 500 680768 Show
Screw set for intake cage, GTF 500 680769 Show
Intake cage for GTF 500 680770 Show
