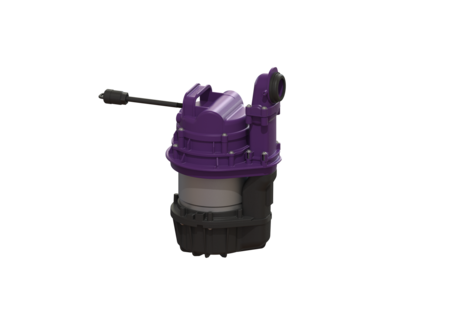

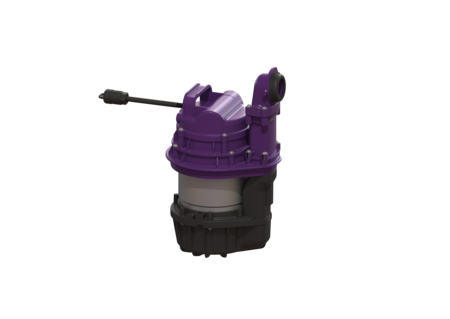

Replacement pump GTF 1200
without float switch
Replacement pump without float switch for the Aqualift S Compact lifting station for floor slab installation.
| Item no. | 680775 |
|---|---|
| GTIN | 4026092085509 |
| Price group | 90 |
Replacement pump GTF 1200 without float switch
Replacement pump without float switch for the Aqualift S Compact lifting station for floor slab installation. Dimensions Net weight: 9,5 kg Gross weight: 10,29 kg Packaging dimension: length: 290 mm Packaging dimension: width: 260 mm Packaging dimension: height: 300 mm Pumping device Pump: GTF 1200 Operating voltage: 230 V Mains frequency: 50 Hz Run dry safe: yes Protection class (pump): IP 68 Max. pumping height: 9 m Power P1: 1,27 kW Power P2: 0,73 kW Operating mode: S1 Length of mains cable for pump: 5 m Rated current: 5,6 A Control Operating voltage: 230 V
