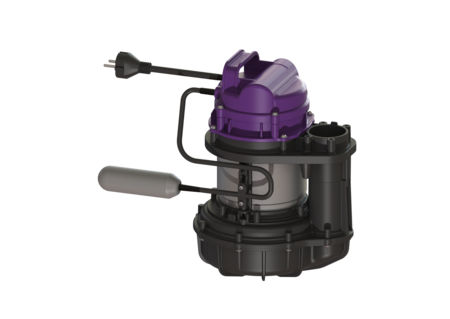

Replacement pump STF 1300 230 V, with float switch
Variant
Rim width: Float switch
General characteristics
Type of wastewater: with sewage
Cable length: 10 m
Dimensions
Net weight: 3,75 kg
Gross weight: 3,75 kg
Packaging dimension: width: 326 mm
Packaging dimension: height: 293 mm
Packaging dimension: length: 379 mm
Pumping device
Pump control: SPF 1300
Number of pumps: 1
Rated current: 6 A
Length of mains cable for pump: 10 m
Protection class control unit: IP 68 (3m)
DSC: integrated
Max. temperature (permanent) of conveyed material: 35 °C
Max. pumping height: 10 m
Speed: 2650 U/min
Power P1: 1,3 kW
Power P2: 0,8 kW
Operating mode: S3 - 50 %
Type of fuse required (electrical protection): C 16 A
Type of pump connection cable: H07RN-F 3G 1.5 mm²
Impeller type: Multi-vane impeller
Control
Mains frequency: 50 Hz
Operating voltage: 230 V
