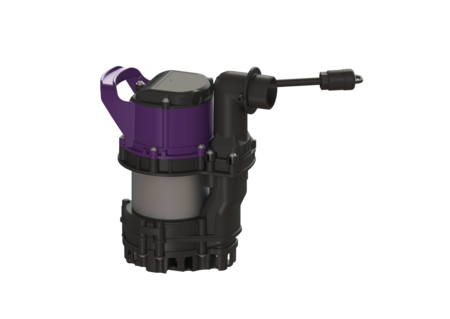

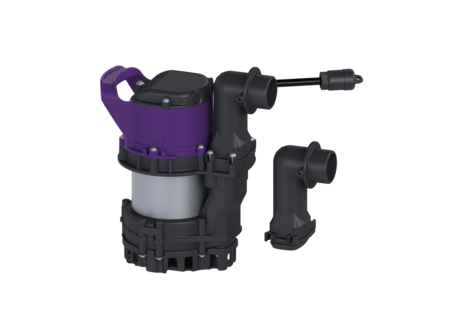

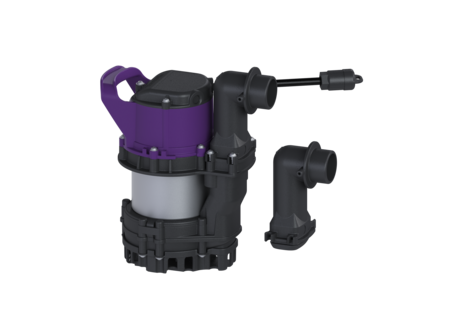

Replacement pump GTF 500
without float switch
Replacement pump without float switch for faecal-free wastewater
| Item no. | 680877 |
|---|---|
| GTIN | 4026092085134 |
| Price group | 90 |
Replacement pump GTF 500 without float switch
Replacement pump without float switch for faecal-free wastewater General characteristics Type of wastewater: without sewage Dimensions Net weight: 5,99 kg Gross weight: 6,49 kg Packaging dimension: length: 276 mm Packaging dimension: width: 241 mm Packaging dimension: height: 382 mm Pumping device Pump: GTF 500 Rated current: 2,7 A Length of mains cable for pump: 5 m Protection class: I Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Control Mains frequency: 50 Hz Operating voltage: 230 V Rated current: 2,7 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Type of wastewater (abwasserart_de):
without sewage
