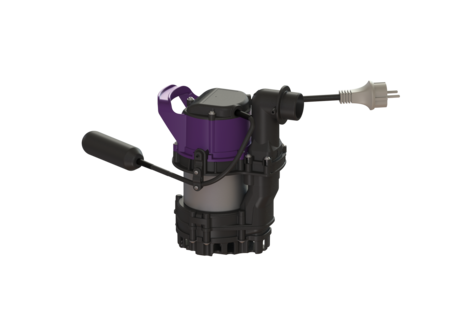

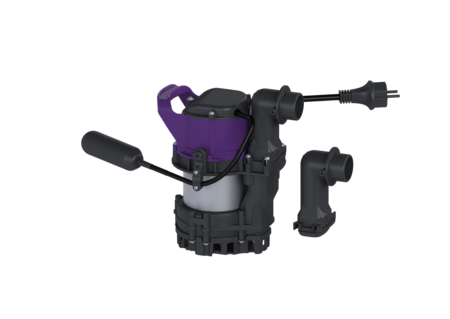

Replacement pump GTF 500
with float switch
Replacement pump with float switch for faecal-free wastewater
| Item no. | 680878 |
|---|---|
| GTIN | 4026092085936 |
| Price group | 90 |
Replacement pump GTF 500 with float switch
Replacement pump with float switch for faecal-free wastewater General characteristics Type of wastewater: without sewage Dimensions Net weight: 6,25 kg Gross weight: 6,64 kg Packaging dimension: length: 276 mm Packaging dimension: width: 241 mm Packaging dimension: height: 382 mm Pumping device Pump: GTF 500 Operating voltage: 230 V Mains frequency: 50 Hz Protection class: I Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Length of mains cable for pump: 5 m Rated current: 2,7 A Control Operating voltage: 230 V Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Multi-vane impeller for GTF 500 | 680767 | Show |
 | Spiral housing for GTF 500 | 680768 | Show |
| Screw set for intake cage, GTF 500 | 680769 | Show | |
 | Intake cage for GTF 500 | 680770 | Show |
 | Pump cover GTF 500 Cable length 5 m, with floater | 680788 | Show |
 | Pressure pipe connection GTF 500 for chamber system LW 400 | 680897 | Show |
- Type of wastewater (abwasserart_de):
without sewage
