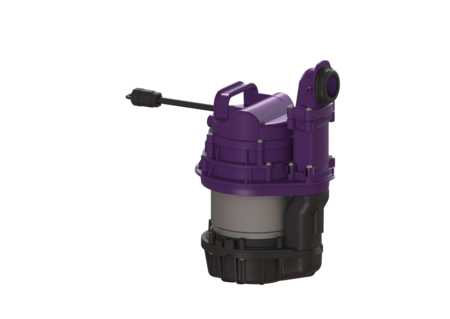

Replacement pump SPZ 1000

resistant, for Aqualift F Compact

PDF product data sheet

Replacement pump resistant to salty media, wastewater from water softening systems and wastewater containing condensate from heating systems.

Item no. 680951
GTIN 4026092093788
Discount group 9

Replacement pump SPZ 1000 resistant, for Aqualift F Compact
Replacement pump resistant to salty media, wastewater from water softening systems and wastewater containing condensate from heating systems. Pumping device: Pump: SPZ 1000 Max. pumping capacity: 12 m3/h Max. pumping height: 10 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S3 - 50 % Power P1: 1.2 kW Power P2: 0.7 kW Speed: 2,800 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 35 °C Connection type: coded plug Length of mains cable for pump: 5 m Rated current: 5.2 A Protection class (pump): IP 68 (3m/48h) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Catalog Page
  • Net weight (ATTR-A3A): 9.7  KGM
  • Gross weight (ATTR-A3B): 10.4  KGM
  • Pump (ATTR-4): SPZ 1000
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Operating mode (ATTR-10): S3 - 50 %
  • Power P1 (ATTR-F4): 1.2  KWT
  • Power P2 (ATTR-F5): 0.7  KWT
  • Speed (ATTR-F2): 2,800  UMIN
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 5.2  AMP
  • Max. pumping capacity (ATTR-F7): 12  MQH
  • Max. pumping height (ATTR-F8): 10  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 35  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): coded plug
  • Protection class (pump) (ATTR-125): IP 68 (3m/48h)
  • Length of mains cable for pump (ATTR-11): 5  MTR
  • Brand (M-ATTR-001): KESSEL
  • Country of origin (ATTR-322): DE
