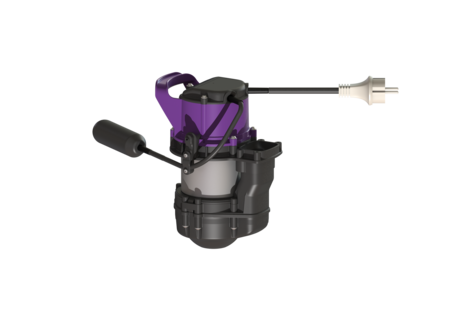

Replacement pump GTF 600
with float switch, 10 m
Replacement pump with float switch for wastewater containing faecal matter.
| Item no. | 680963 |
|---|---|
| GTIN | 4026092095386 |
| Price group | 90 |
Replacement pump GTF 600 with float switch, 10 m
Replacement pump with float switch for wastewater containing faecal matter. Variant Rim width: Float switch General characteristics Type of wastewater: without sewage Dimensions Net weight: 6,85 kg Gross weight: 6,85 kg Packaging dimension: width: 241 mm Packaging dimension: height: 265 mm Packaging dimension: length: 276 mm Pumping device Pump control: GTF 600 Connection type: Schuko (earthed contact) 2-pin Rated current: 2,9 A Length of mains cable for pump: 10 m Protection class control unit: IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 8 m Speed: 2750 U/min Power P1: 0,65 kW Power P2: 0,4 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Type of wastewater (abwasserart_de):
without sewage
