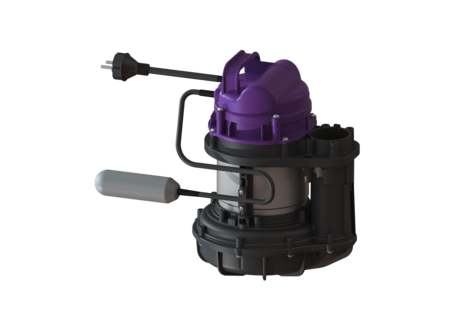

Replacement pump GTF 1250

w. float switch, Aqualift S 100/200, 5m

Replacement pump with float switch for faecal-free wastewater.

Item no. 680978
GTIN 4026092095911
Price group 90

    Replacement pump GTF 1250 w. float switch, Aqualift S 100/200, 5m
    Replacement pump with float switch for faecal-free wastewater. Variant Rim width: Float switch General characteristics Type of wastewater: without sewage Dimensions Net weight: 10,5 kg Gross weight: 10,5 kg Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Packaging dimension: length: 379 mm Pumping device Pump control: GTF 1250 Connection type: Schuko (earthed contact) 2-pin Rated current: 5,4 A Length of mains cable for pump: 5 m Protection class control unit: IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 11 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Type of wastewater (abwasserart_de): without sewage
