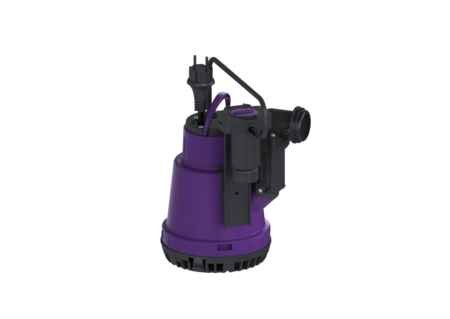

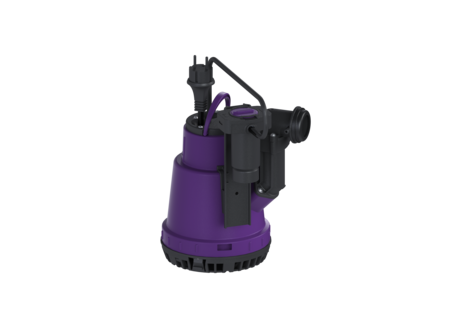

Replacement KTP300 pump for Minilift L
Replacement KTP300 pump
Variant
Pump control: Float switch
General characteristics
Material: Polymer
Type of wastewater: without sewage
Cable length: 5 m
Dimensions
Net weight: 5,1 kg
Gross weight: 5,1 kg
Length: 275 mm
Width: 390 mm
Height: 216 mm
Packaging dimension: length: 279 mm
Packaging dimension: width: 249 mm
Packaging dimension: height: 288 mm
Pumping device
Pump: KTP 300
Number of pumps: 1
Weight, pump: 5,1 kg
Connection type: Schuko (earthed contact) 2-pin
Operating voltage: 230 V
Mains frequency: 50 Hz
Protection class (pump): IP 68 (3m)
Max. temperature (permanent) of conveyed material: 40 °C
Hot water resistance for a short time (2 min): 80 °C
Max. pumping height: 6 m
Speed: 2800 U/min
Power P1: 0,34 kW
Power P2: 0,21 kW
Operating mode: S1
Type of pump connection cable: H07RN-F 3G 1.5 mm²
Impeller type: Multi-vane impeller
Free passage: 10 mm
Type of fuse required (pump): C 16 A
Length of mains cable for pump: 5 m
Rated current: 1,6 A
Control
Mains frequency: 50 Hz
Operating voltage: 230 V
Connection type: Schuko (earthed contact) 2-pin
