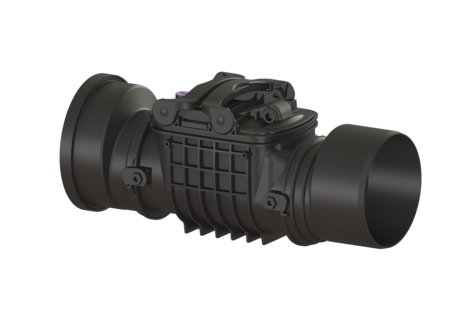

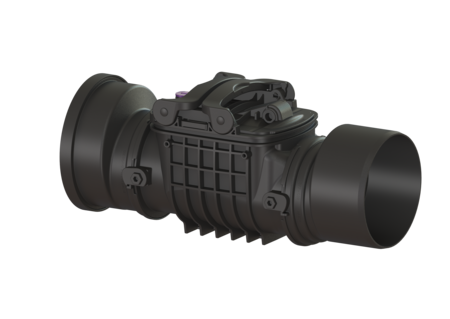

Staufix clean out

DN 200, exposed

KESSEL Staufix clean out, wastewater for wastewater with and without sewage, nominal size (DN) 200, cover locking One-handed closure, exposed drainage pipe, type of cover Lockable cover

  • Simple conversion to Staufix type 1
  • Own gradient only 8 mm
  • Quick and toolless access for cleaning
Item no. 700200
GTIN 4026092075975
Price group 10

    Staufix clean out DN 200, exposed
    The clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be supplemented by up to two flaps and one emergency closure or be converted to the StaufixControl backwater valve. General characteristics Colour: black Nominal size (DN): 200 Outer diameter (OD): 200 mm Note on nominal size: Hydraulics correspond to DN 150 Type of wastewater: for wastewater with and without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 3,4 kg Gross weight: 6 kg Vertical drop between inlet and outlet: 8 mm Length: 586 mm Width: 233 mm Height: 306 mm Packaging dimension: length: 524 mm Packaging dimension: width: 222 mm Packaging dimension: height: 265 mm Coverage features Type of cover: Lockable cover Cover locking: One-handed closure
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Battery 3 V for control unit 680665 Show
    Seal Cover seal for Staufix, DN 125-200 686113 Show
    Staufix test funnel with seal 70214 Show
    Lockable cover, DN125-200 72236 Show
    Spigot DN 200, with seal 83084 Show
    Socket DN 200, with seal 83088 Show
    • Nominal size (DN) (nennweite): 200
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): for wastewater with and without sewage
    • Length (laenge): 586  mm
    • Width (breite): 233  mm
