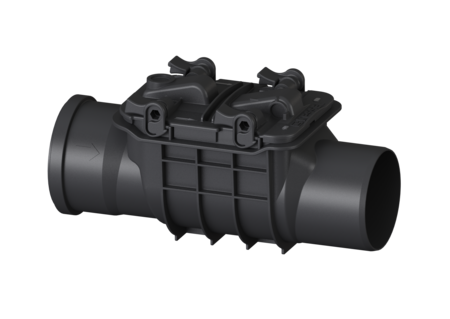

Backwater valve Staufix Basic

DN 100

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand.

  • Optional rat protection flap for additional safety
  • Fast and toolless maintenance and cleaning
  • Ideal for modernisation, can also be installed in existing pipes later
Item no. 70100
GTIN 4026092001905
Price group 10

    Backwater valve Staufix Basic DN 100
    The clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix Basic backwater valve with up to two flaps and emergency closure. General characteristics Colour: black Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 0,92 kg Gross weight: 0,92 kg Vertical drop between inlet and outlet: 9 mm Width: 155 mm Height: 170 mm Length: 355 mm Packaging dimension: width: 170 mm Packaging dimension: height: 175 mm Packaging dimension: length: 360 mm Coverage features Adjustment range: Quick-release closure
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Cover with gasket Ø 100/110 70251 Show
    Test Reports and Certificates
    • Nominal size (DN) (nennweite): 100
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): without sewage
    • (rueckstauschutz):
    • (mechanische_rueckstauklappen):
    • (notverschluss):
