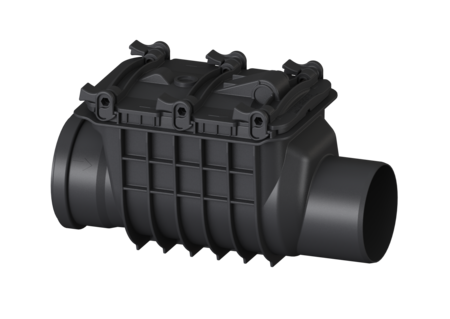

Backwater valve Staufix Basic

DN 125

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand.

  • Optional rat protection flap for additional safety
  • Fast and toolless maintenance and cleaning
  • Ideal for modernisation, can also be installed in existing pipes later
Item no. 70125
GTIN 4026092001998
Price group 10

    Backwater valve Staufix Basic DN 125
    The clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix Basic backwater valve with up to two flaps and emergency closure. General characteristics Colour: black Nominal size (DN): 125 Outer diameter (OD): 125 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 1,75 kg Gross weight: 1,75 kg Vertical drop between inlet and outlet: 9 mm Width: 200 mm Height: 230 mm Length: 405 mm Packaging dimension: width: 220 mm Packaging dimension: height: 240 mm Packaging dimension: length: 400 mm Coverage features Adjustment range: Quick-release closure
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Cover with gasket Ø 125/160 70252 Show
    Test Reports and Certificates
    • Nominal size (DN) (nennweite): 125
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): without sewage
    • (rueckstauschutz):
    • (mechanische_rueckstauklappen):
    • (notverschluss):
