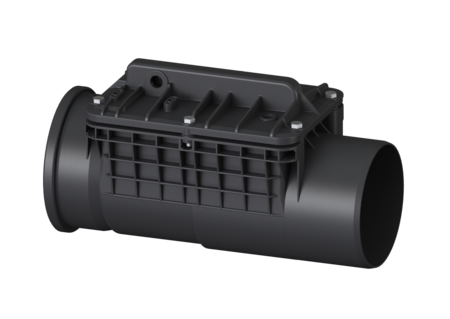

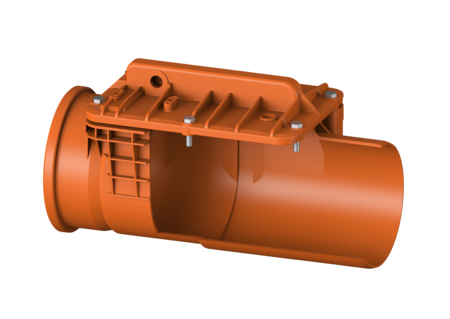

Backwater valve Staufix Basic

DN 200

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand.

  • Optional rat protection flap for additional safety
  • Fast and toolless maintenance and cleaning
  • Ideal for modernisation, can also be installed in existing pipes later
Item no. 70200
GTIN 4026092002179
Price group 10

    Backwater valve Staufix Basic DN 200
    The clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix Basic backwater valve with up to two flaps and emergency closure. General characteristics Colour: black Nominal size (DN): 200 Outer diameter (OD): 200 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 2,2 kg Gross weight: 2,2 kg Vertical drop between inlet and outlet: 9 mm Width: 248 mm Height: 278 mm Length: 530 mm Packaging dimension: width: 240 mm Packaging dimension: height: 290 mm Packaging dimension: length: 533 mm Coverage features Adjustment range: screwed
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Screw for lockable cover DN 200 680008 Show
    Seal package for Staufix Ø 200 70118 Show
    Cover with gasket Ø 200 70201 Show
    • Nominal size (DN) (nennweite): 200
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): without sewage
    • (rueckstauschutz):
    • (mechanische_rueckstauklappen):
    • (notverschluss):
