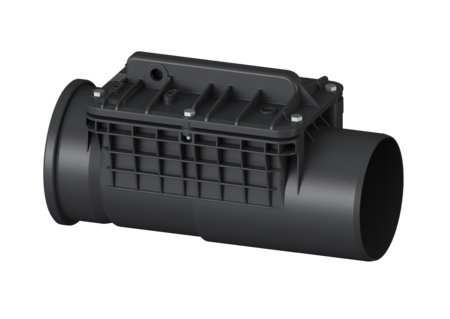

Backwater valve Staufix Basic

DN 200, Type 0, w/o emergency closure

71200

KESSEL Backwater valve Staufix Basic, backwater protection Type 0, nominal size (DN) 200, wastewater Rainwater, exposed drainage pipe, a mechanical backwater flap, outside diameter (OD) 200 mm, cover locking screwed

  • Simple conversion possible using conversion kits
  • Fast and toolless maintenance and cleaning
  • Ideal for modernisation, can also be installed in existing pipes later
Item no. 71200
GTIN 4026092002346
Price group 10

Backwater valve Staufix Basic DN 200, Type 0, w/o emergency closure

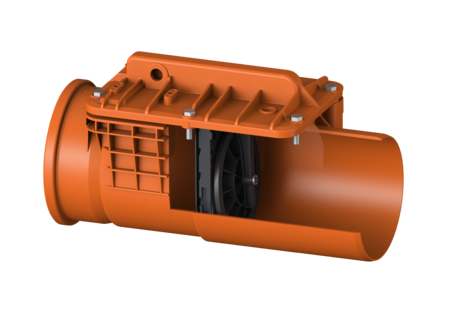

The backwater valve for rainwater is equipped with a mechanical flap which closes automatically in the event of backwater. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second backwater flap or an emergency closure. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 200 Outer diameter (OD): 200 mm Type of wastewater: Rainwater Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 0 Dimensions Net weight: 4,6 kg Gross weight: 4,6 kg Vertical drop between inlet and outlet: 9 mm Length: 530 mm Width: 248 mm Height: 278 mm Packaging dimension: length: 290 mm Packaging dimension: width: 250 mm Packaging dimension: height: 535 mm Coverage features Cover locking: screwed
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
680008 Screw for lockable cover DN 200 680008 Show
70118 Seal set Staufix DN 200 70118 Show
70201 Lockable cover Staufix DN 200, bolted 70201 Show
70205 Slide-in flap housing DN 200, with seal and flap 70205 Show
Manuals
CAD Data
Declaration of Performance
  • Nominal size (DN) (nennweite): 200
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Backwater protection (rueckstauschutz): Type 0
  • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
  • (notverschluss):
