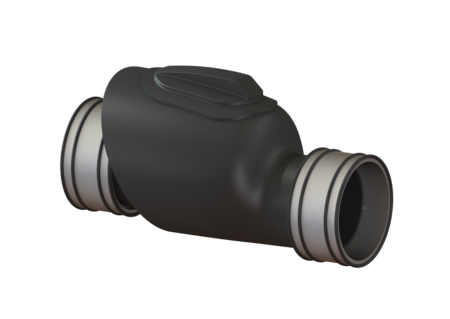

Backwater valve Multitube
DN 250, 1 flap
KESSEL Backwater valve Multitube, wastewater without sewage, nominal size (DN) 250, underground installation, a mechanical backwater flap, outside diameter (OD) 260 mm, cover locking screwed
- Inlet and outlet with pipe clamp
- Bridgeable outer diameter at least nominal width + 20 mm
- Simple maintenance and cleaning
| Item no. | 71250 |
|---|---|
| GTIN | 4026092011607 |
| Price group | 10 |
Backwater valve Multitube DN 250, 1 flap
The backwater valve for rainwater is equipped with a mechanical flap which closes automatically in the event of backwater. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Nominal size (DN): 250 Outer diameter (OD): 260 mm Note on nominal size: Bridgeable outer diameter of pipe clamps: 250 - 275 mm Type of wastewater: without sewage Installation situation: underground installation Delivery state: installation-ready Dimensions Net weight: 19,28 kg Gross weight: 21,9 kg Vertical drop between inlet and outlet: 60 mm Length: 730 mm Width: 455 mm Height: 485 mm Packaging dimension: length: 600 mm Packaging dimension: width: 405 mm Packaging dimension: height: 760 mm Coverage features Cover locking: screwed
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Nominal size (DN) (nennweite): 250
- Installation situation (einbausituation):
underground installation
- Type of wastewater (abwasserart_de):
without sewage
- Length (laenge): 730 mm
- Width (breite): 455 mm
- Mechanical backwater flaps (mechanische_rueckstauklappen): 1
