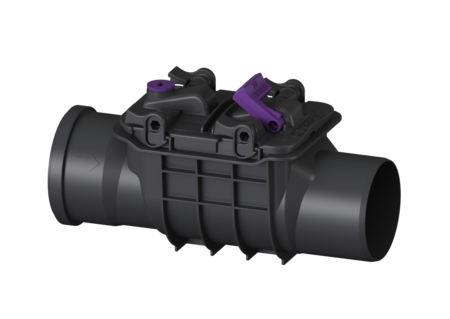

Backwater valve Staufix Basic

DN 100, Type 1 R, with emergency closure

KESSEL Backwater valve Staufix Basic, backwater protection Type 1, nominal size (DN) 100, wastewater without sewage, exposed drainage pipe, a mechanical backwater flap, outside diameter (OD) 110 mm, yes

  • Simple conversion possible using conversion kits
  • Optional rat protection flap for additional safety
  • Fast and toolless maintenance and cleaning
Item no. 72100R
GTIN 4026092028360
Price group 10

Backwater valve Staufix Basic DN 100, Type 1 R, with emergency closure
The backwater valve for wastewater without sewage is equipped with one mechanical flap which closes automatically in the event of backwater and also serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second backwater flap. Variant Stainless steel flap as rat protection: yes Emergency closure: yes Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 1 Dimensions Net weight: 1,9 kg Gross weight: 1,9 kg Vertical drop between inlet and outlet: 9 mm Length: 355 mm Width: 155 mm Height: 205 mm Packaging dimension: length: 210 mm Packaging dimension: width: 164 mm Packaging dimension: height: 365 mm Coverage features Adjustment range: Quick-release closure
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Emergency closure lever for Staufix DN 100 680063 Show
Backwater flap, DN100, f. Staufix/Contro 70233 Show
Flap housing with gasket Ø 100/110 70241 Show
Cover with locking lever Ø 100/110 70261 Show
CAD Data
Test Reports and Certificates
Declaration of Performance
  • Nominal size (DN) (nennweite): 100
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Backwater protection (rueckstauschutz): Type 1
  • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
  • Emergency closure (notverschluss): yes
