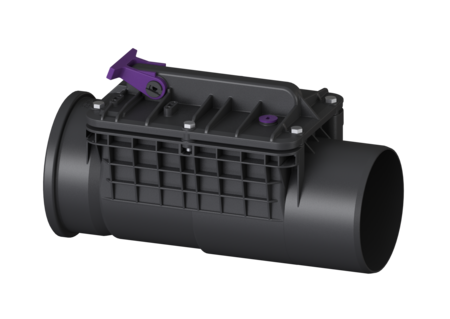

Backwater valve Staufix Basic

DN 200, Type 1, with emergency closure

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand.

  • Optional rat protection flap for additional safety
  • Fast and toolless maintenance and cleaning
  • Ideal for modernisation, can also be installed in existing pipes later
Item no. 72200
GTIN 4026092002384
Price group 10

Backwater valve Staufix Basic DN 200, Type 1, with emergency closure
The backwater valve for wastewater without sewage is equipped with one mechanical flap which closes automatically in the event of backwater and also serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second backwater flap. Variant Stainless steel flap as rat protection: no Emergency closure: yes Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 200 Outer diameter (OD): 200 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 1 Dimensions Net weight: 2,6 kg Gross weight: 2,6 kg Vertical drop between inlet and outlet: 9 mm Width: 248 mm Height: 328 mm Length: 530 mm Packaging dimension: width: 250 mm Packaging dimension: height: 535 mm Packaging dimension: length: 290 mm Coverage features Adjustment range: screwed
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Screw for lockable cover DN 200 680008 Show
Seal package for Staufix Ø 200 70118 Show
Cover with locking lever Ø 200 70203 Show
Insert housing with flap Ø 200 70205 Show
Manuals
CAD Data
Test Reports and Certificates
Declaration of Performance
  • Nominal size (DN) (nennweite): 200
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Backwater protection (rueckstauschutz): Type 1
  • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
  • Emergency closure (notverschluss): yes
