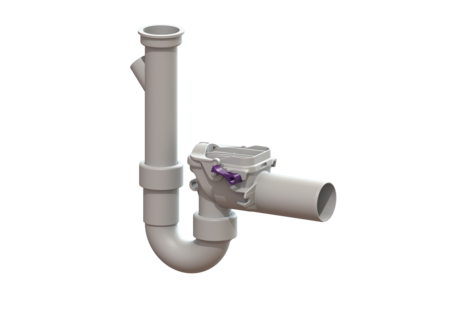

Backwater valve Staufix

Siphon, DN 50, Washing machine, Type 5

KESSEL Backwater valve Staufix, wastewater without sewage, nominal size (DN) 50, installation as washing machine connection, 2 mechanical backwater flaps

  • Ideal for modernisation: can also be installed in existing pipes later
  • Simple, toolless maintenance and cleaning
  • Corrosion-free
Item no. 73052
GTIN 4026092027615
Price group 10

Backwater valve Staufix Siphon, DN 50, Washing machine, Type 5
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Variant Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: white Standard: EN 13564 Nominal size (DN): 50 Type of wastewater: without sewage Installation situation: installation as washing machine connection Delivery state: installation-ready Backwater protection: Type 5 Dimensions Net weight: 0,46 kg Gross weight: 0,66 kg Length: 260 mm Width: 80 mm Height: 310 mm Packaging dimension: length: 285 mm Packaging dimension: width: 285 mm Packaging dimension: height: 105 mm Coverage features Adjustment range: One-handed closure
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Lockable cover DN 50 including gasket 70054 Show
Flap set DN 50 70055 Show
Emergency clos. (3 pieces) Staufix DN50 70056 Show
CAD Data
Declaration of Performance
  • Nominal size (DN) (nennweite): 50
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Backwater protection (rueckstauschutz): Type 5
  • Installation situation (einbausituation): installation as washing machine connection
