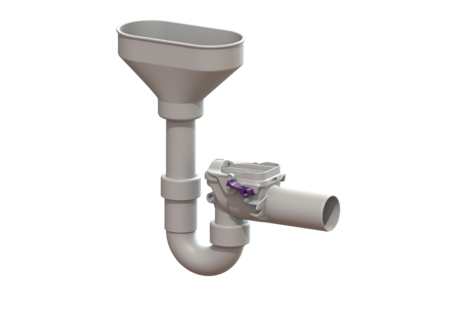

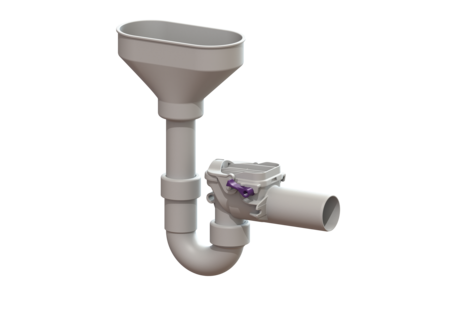

Backwater valve Staufix

Siphon, DN 50, Inlet funnel, Type 5

KESSEL Backwater valve Staufix, wastewater without sewage, nominal size (DN) 50, installation as inlet funnel, 2 mechanical backwater flaps

  • Ideal for modernisation: can also be installed in existing pipes later
  • Simple, toolless maintenance and cleaning
  • Corrosion-free
Item no. 73053
GTIN 4026092027622
Price group 10

Backwater valve Staufix Siphon, DN 50, Inlet funnel, Type 5
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Variant Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: white Standard: EN 13564 Nominal size (DN): 50 Type of wastewater: without sewage Installation situation: installation as inlet funnel Delivery state: installation-ready Backwater protection: Type 5 Dimensions Net weight: 0,54 kg Gross weight: 0,73 kg Length: 260 mm Width: 80 mm Height: 370 mm Packaging dimension: length: 285 mm Packaging dimension: width: 285 mm Packaging dimension: height: 105 mm Coverage features Cover locking: One-handed closure
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Lockable cover Staufix Siphon DN 50, white 70054 Show
Flap set DN50, flap housing with two flaps 70055 Show
Emergency closure for Staufix DN 50 70056 Show
CAD Data
Test Reports and Certificates
Declaration of Performance
  • Nominal size (DN) (nennweite): 50
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Backwater protection (rueckstauschutz): Type 5
  • Installation situation (einbausituation): installation as inlet funnel
