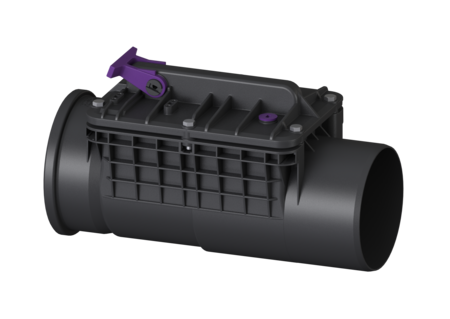

Backwater valve Staufix Basic

DN 200, Type 2, with emergency closure

KESSEL Backwater valve Staufix Basic, backwater protection Type 2, nominal size (DN) 200, wastewater without sewage, exposed drainage pipe, 2 mechanical backwater flaps, outside diameter (OD) 200 mm, no

  • Optional rat protection flap for additional safety
  • Fast and toolless maintenance and cleaning
  • Ideal for modernisation, can also be installed in existing pipes later
Item no. 73200
GTIN 4026092002452
Price group 10

Backwater valve Staufix Basic DN 200, Type 2, with emergency closure
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Variant Stainless steel flap as rat protection: no Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 200 Outer diameter (OD): 200 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 2 Dimensions Net weight: 2,8 kg Gross weight: 2,8 kg Vertical drop between inlet and outlet: 9 mm Length: 530 mm Width: 248 mm Height: 328 mm Packaging dimension: length: 290 mm Packaging dimension: width: 250 mm Packaging dimension: height: 535 mm Coverage features Cover locking: screwed
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Screw for lockable cover DN 200 680008 Show
Lockable cover Staufix 70203 Show
Slide-in flap housing DN 200, with seal and flap 70205 Show
Testing funnel with seal 70214 Show
Manuals
Declaration of Performance
  • Nominal size (DN) (nennweite): 200
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Backwater protection (rueckstauschutz): Type 2
  • Mechanical backwater flaps (mechanische_rueckstauklappen): 2
  • Emergency closure (notverschluss): yes
