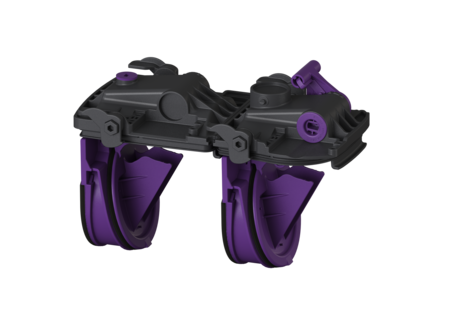

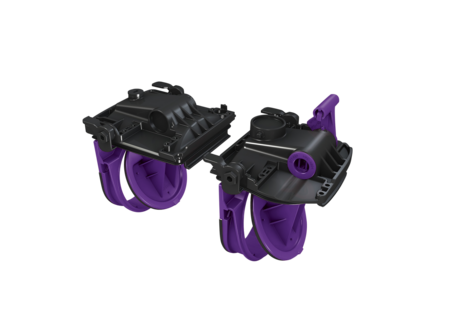

Staufix SWA conversion kit
DN 100-200, fr. 01/2011
The conversion kit is equipped with two mechanical flaps, which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. The conversion kit is used to retrofit the Controlfix for the Staufix FKA backwater valve.
| Item no. | 80091 |
|---|---|
| GTIN | 4026092048221 |
| Price group | 30 |
Staufix SWA conversion kit DN 100-200, fr. 01/2011
The conversion kit is equipped with two mechanical flaps, which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. The conversion kit is used to retrofit the Controlfix for the Staufix FKA backwater valve. General characteristics Material: Polymer Standard: EN 13564 Nominal size (DN): 100-200 Note on nominal size: Hydraulics correspond to DN 150 Type of wastewater: without sewage Installation situation: floor slab installation Backwater protection: Type 2 Dimensions Net weight: 3,11 kg Gross weight: 3,27 kg Packaging dimension: width: 31,5 mm Packaging dimension: height: 41,5 mm Packaging dimension: length: 40,5 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Declaration of Performance |
- Nominal size (DN) (nennweite):
100-200
- Material (material):
Polymer
- Installation situation (einbausituation):
floor slab installation
- Type of wastewater (abwasserart_de):
without sewage
