Cover plate
tileable, surface water rest., 384x384mm
KESSEL Cover plate tileable, surface water rest., 384x384mm, stone grey Polymer
| Item no. | 83052 |
|---|---|
| GTIN | 4026092002810 |
| Price group | 30 |

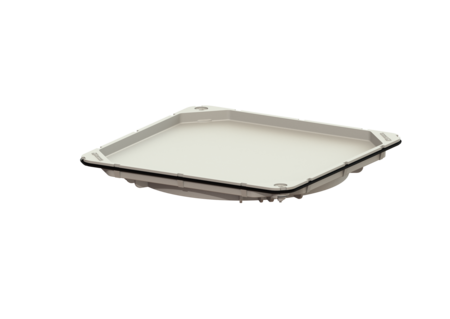

Cover plate tileable, surface water rest., 384x384mm
Cover plate for backwater valves and lifting stations with telescopic upper section for installation in the floor slab Variant Seal: yes General characteristics Colour: stone grey Material: Polymer ATEX: no Dimensions Net weight: 1,6 kg Gross weight: 1,76 kg Packaging dimension: length: 397 mm Packaging dimension: width: 386 mm Packaging dimension: height: 50 mm Coverage features Type: surface water resistant Type of cover: tileable cover plate Surface: tileable Load class: A 15 (EN 124) / L 15 (EN 1253-1) Max. flooring height: 16 mm Odour trap: no
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|

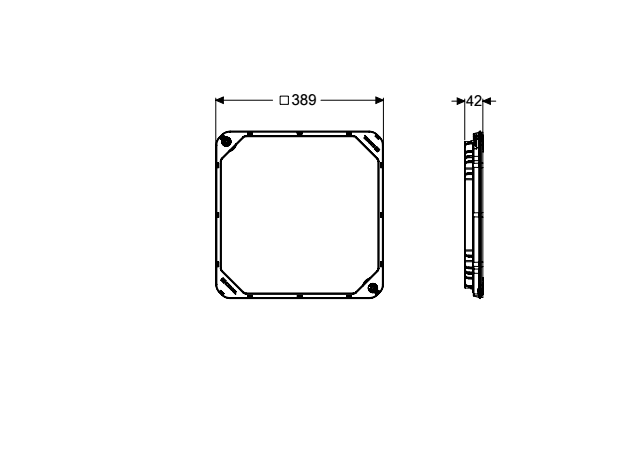

| CAD Data |
|---|
- Material (material):
Polymer
