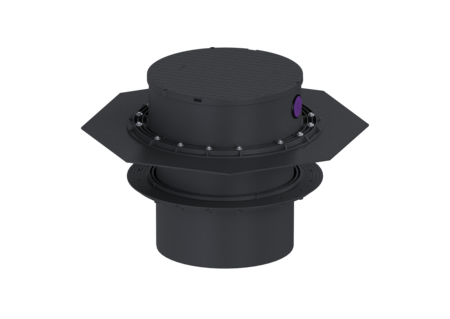

Waterproof concrete install. kit
OD: 50 mm, for building contractors

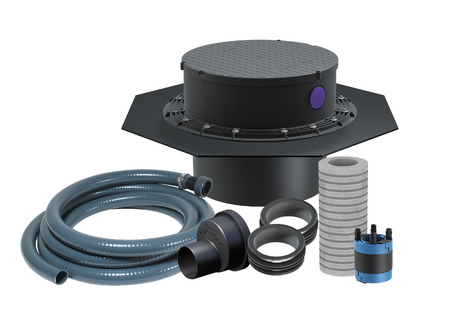

Waterproof concrete installation kit for building contractors for use in KESSEL Aqualift Compact lifting stations and Ecolift backwater lifting stations in structures with waterproof concrete slabs, consisting of extension section, waterproof flange in the middle, pressure pipe kit, puddle flange, casing incl. annular space seal for pressure hose and adapter.
| Item no. | 83079 |
|---|---|
| GTIN | 4026092098202 |
| Price group | 20 |
Waterproof concrete install. kit OD: 50 mm, for building contractors
Waterproof concrete installation kit for building contractors for use in KESSEL Aqualift Compact lifting stations and Ecolift backwater lifting stations in structures with waterproof concrete slabs, consisting of extension section, waterproof flange in the middle, pressure pipe kit, puddle flange, casing incl. annular space seal for pressure hose and adapter. General characteristics Outer diameter (OD): 50 mm Extension section: middle waterproof flange, System 400 Pressure pipe set (DN): 40 Adapter (DN): 70/100 Dimensions Net weight: 21,16 kg Gross weight: 21,16 kg Packaging dimension: length: 710 mm Packaging dimension: width: 710 mm Packaging dimension: height: 405 mm
