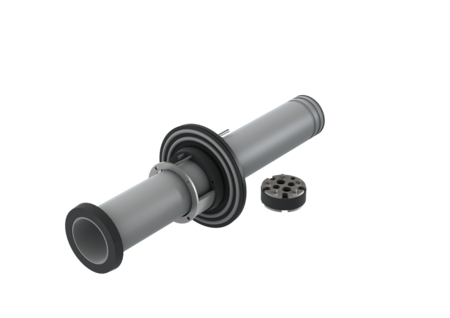

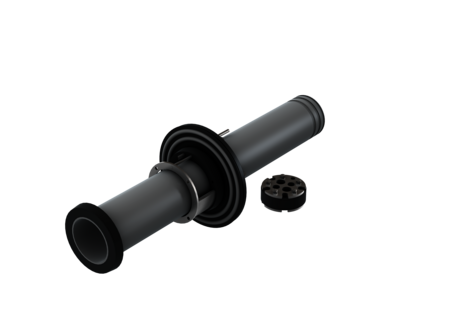

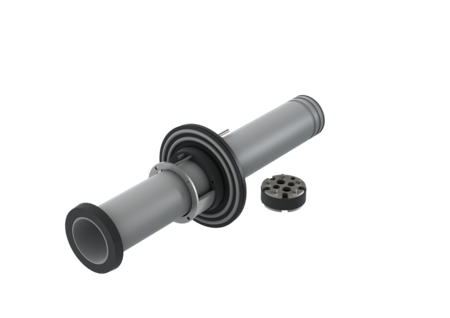

Consisting of the Quadro-Secura Quick/H single-pipe house entry system with injection system for use in all standard wall types with a wall thickness of 200-550 mm. Including DN100 sealing insert for feed-through and waterproofing layer of all required cables for boiler system solutions with 400V mains voltage. Technical data "Doyma Quadro Secura Quick/H" - Dimensions: sleeve tube L= 760mm, D= 250mm - Dimensions: Sealing flange D= 250mm - Use in the most common wall types with waterproofing layer in accordance with DIN 18533 W2.1-E (black tank) or waterproof concrete core drilling (white tank) - for wall thicknesses 200 - 550 mm - For installation in casing pipe / core drill hole DN 150 from 149 mm to 153 mm - Connection option for rigid or flexible DN 110 casing pipes - with injection system, for gas-tight and pressurised water-tight waterproofing layers of pipes and cables, with integrated sleeve pipe to accommodate boiler sealing insert in D100. - Waterproofing layer and fixing by means of resin injection - With integrated run-off stop for the expansion resin to be applied - Tightening the outer seal with integrated torque control using special self-shearing nuts - Also suitable for standard hollow bricks - with tested radon tightness Technical data sealing insert - Dimensions: D100 (for 99-104mm), L= 65mm - 9 cable openings: 4x Ø7mm, 1 x Ø8mm, 2x Ø17mm, 2x Ø10mm - Unused openings closed with blind plugs - Tightness up to 0.5 bar water pressure
