Cover plate
Load class A, Grey iron, screwed
KESSEL Cover plate Load class A, Grey iron, screwed, Grey iron
| Item no. | 860132 |
|---|---|
| GTIN | 4026092007457 |
| Price group | 60 |

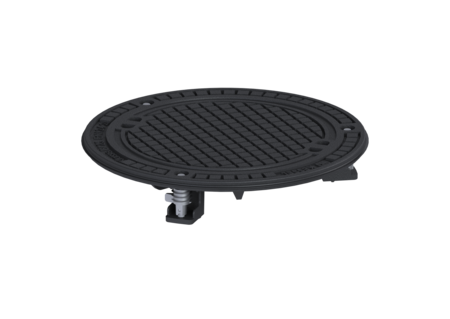

Cover plate Load class A, Grey iron, screwed
Cover plate for chamber systems for underground installation, including seal set and removal key General characteristics Material: Grey iron Dimensions Net weight: 51 kg Gross weight: 56 kg Diameter: 648 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 250 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Locking: screwed Load class: A 15 (EN 124)
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| CAD Data |
