Pumping station Aquapump XL

Mono, Basic, AP 501,1400-1850 mm

879710
879710
PDF product data sheet

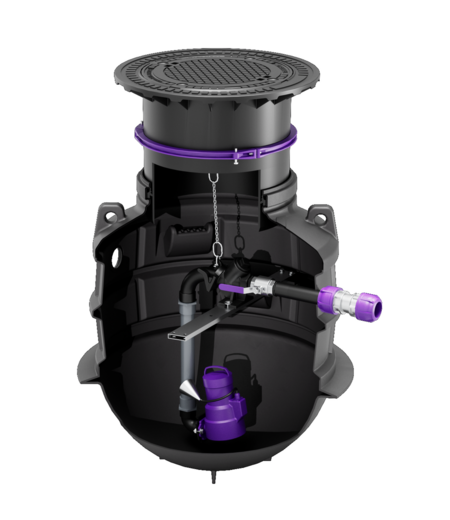

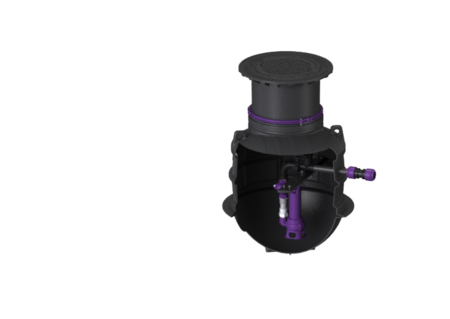

KESSEL Pumping station Aquapump XL, wastewater for wastewater with and without sewage, installation depth 1400 - 1850 mm, with a submersible AP 501 230V pump, operating mode S1, level measurement mechanical

  • height-adjustable upper section
  • Preconfigured in the factory
  • LW 600 chamber system suitable for underground installation
Item no. 879710
GTIN 4026092110287
Price group 60

    Pumping station Aquapump XL Mono, Basic, AP 501,1400-1850 mm
    The pumping station for wastewater with and without sewage is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. Quick-release closures enable the integrated components to be removed easily. The components are pre-assembled for final assembly on site. Including openings for inlet, ventilation and cable duct. Variant Type of system: Single unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with and without sewage Installation situation: underground installation System type: Mono Dimensions Net weight: 183 kg Gross weight: 197 kg Groundwater resistant from lower edge of base section: 1000 mm Installation depth: 1400 - 1850 mm Length: 1260 mm Width: 1220 mm Packaging dimension: length: 1260 mm Packaging dimension: width: 1220 mm Packaging dimension: height: 1850 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet nominal size (OD): 100 mm Inlet nominal size (DN): 90 Pumping volume: 200 l Pumping device Pump: AP 501 230V Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Mains frequency: 50 Hz Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 6,3 m³/h Max. pumping height: 12 m Speed: 2900 U/min Power P1: 1,55 kW Power P2: 1,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Type of fuse required (pump): C 16 A Length of mains cable for pump: 10 m Rated current: 6 A Control Control unit: no Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (control unit): C 16 A
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Installation situation (einbausituation): underground installation
    • Type of wastewater (abwasserart_de): for wastewater with and without sewage
    • (belastungsklasse):
    • Pump (pumpe): AP 501 230V
    • Installation depth (einbautiefe): 1,400  mm
    • Impeller type (laufrad_typ): Multi-vane impeller
    • Control unit (schaltgeraet): no
