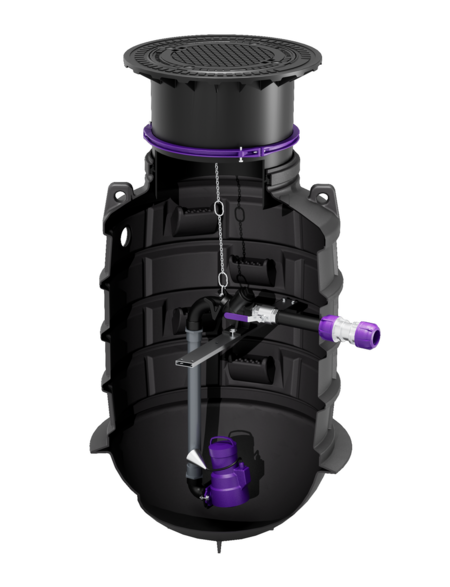

Pumping station Aquapump XL
Mono, Basic, AP 501, 1900-2350 mm
KESSEL Pumping station Aquapump XL, wastewater for wastewater with and without sewage, installation depth 1900 - 2350 mm, with a submersible VX 15/50 pump, operating mode S1, level measurement mechanical
- height-adjustable upper section
- Preconfigured in the factory
- LW 600 chamber system suitable for underground installation
| Item no. | 879720 |
|---|---|
| GTIN | 4026092110294 |
| Price group | 60 |
Pumping station Aquapump XL Mono, Basic, AP 501, 1900-2350 mm
The pumping station for wastewater with and without sewage is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. Quick-release closures enable the integrated components to be removed easily. The components are pre-assembled for final assembly on site. Including openings for inlet, ventilation and cable duct. Variant Type of system: Single unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with and without sewage Installation situation: underground installation System type: Mono Dimensions Net weight: 157 kg Gross weight: 172 kg Groundwater resistant from lower edge of base section: 1000 mm Installation depth: 1900 - 2350 mm Length: 1260 mm Width: 1220 mm Packaging dimension: length: 1260 mm Packaging dimension: width: 1220 mm Packaging dimension: height: 2350 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet nominal size (OD): 100 mm Inlet nominal size (DN): 90 Pumping volume: 200 l Pumping device Pump: VX 15/50 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Mains frequency: 50 Hz Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 39 m³/h Max. pumping height: 11 m Speed: 2900 U/min Power P1: 1,55 kW Power P2: 1,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Type of fuse required (pump): C 16 A Length of mains cable for pump: 10 m Rated current: 7 A Control Control unit: no Operating voltage: 230 V Type of fuse required (control unit): C 16 A Level measurement instrument: Float switch Type of level measurement: mechanical Connection type: Schuko (earthed contact) 2-pin
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Declaration of Performance | |
| Declaration of Conformity |
- Installation situation (einbausituation):
underground installation
- Type of wastewater (abwasserart_de): for wastewater with and without sewage
- (belastungsklasse):
- Pump (pumpe): VX 15/50
- Installation depth (einbautiefe): 1,900 mm
- Impeller type (laufrad_typ): Multi-vane impeller
- Control unit (schaltgeraet): no
