Pumping station Aquapump XL
Tronic, Basic, AP 501, 1900-2350 mm

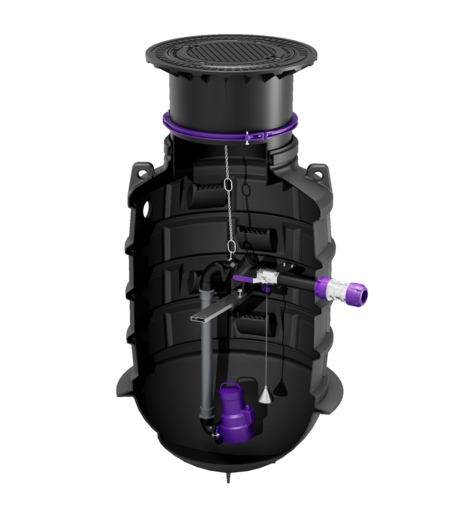

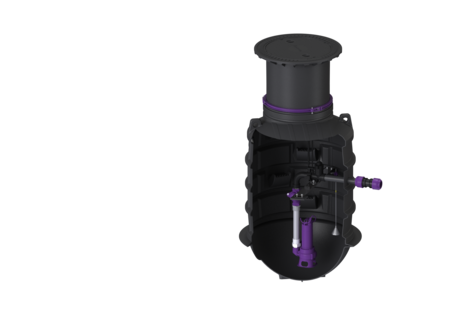

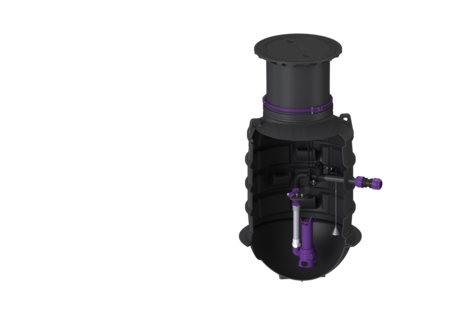

KESSEL Pumping station Aquapump XL, wastewater for wastewater with or without sewage (in installation situations without ATEX requirements), installation depth 1900 - 2350 mm, with a submersible AP 501 pump, operating mode S1, level measurement pneumatic
- height-adjustable upper section
- Preconfigured in the factory
- LW 600 chamber system suitable for underground installation
Item no. | 879721 |
---|---|
GTIN | 4026092096710 |
Price group | 60 |
Pumping station Aquapump XL Tronic, Basic, AP 501, 1900-2350 mm
The pumping station for wastewater with and without sewage is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. Quick-release closures enable the integrated components to be removed easily. The components are pre-assembled for final assembly on site. Including openings for inlet, ventilation and cable duct. Variant Type of system: Single unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with or without sewage (in installation situations without ATEX requirements) Installation situation: underground installation System type: Tronic ATEX: no Dimensions Net weight: 198 kg Gross weight: 212 kg Groundwater resistant from lower edge of base section: 2000 mm Installation depth: 1900 - 2350 mm Length: 1260 mm Width: 1220 mm Packaging dimension: length: 1260 mm Packaging dimension: width: 1220 mm Packaging dimension: height: 2350 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet nominal size (OD): 100 mm Inlet nominal size (DN): 90 mm Pumping volume: 200 l Pumping device Pump: AP 501 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Rated current: 6 A Length of mains cable for pump: 10 m Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 6,3 m³/h Max. pumping height: 12 m Speed: 2900 U/min Power P1: 1,25 kW Power P2: 0,75 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Control Control unit: Comfort Level measurement instrument: Pressure sensor Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,45 m Potential-free contact: optional Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 6 A Type of fuse required (electrical protection): C 16 A
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Manuals | |
---|---|
Declaration of Performance |
- Control unit (schaltgeraet): Comfort
- TÜV test mark (pruefzeichen): ID 1111241940
- Installation situation (einbausituation): underground installation
- Type of wastewater (abwasserart_de): for wastewater with or without sewage (in installation situations without ATEX requirements)
- (belastungsklasse):
- Pump (pumpe): AP 501
- Installation depth (einbautiefe): 1,900 mm
- Impeller type (laufrad_typ): Multi-vane impeller
