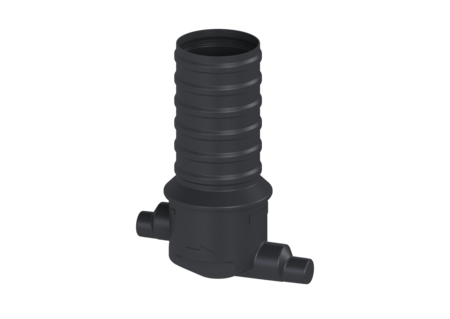

Sampling chamber d=400, DN 100/150, Classe B, ventilated
Variant
Direction of flow: straight
Chamber system: LW 400

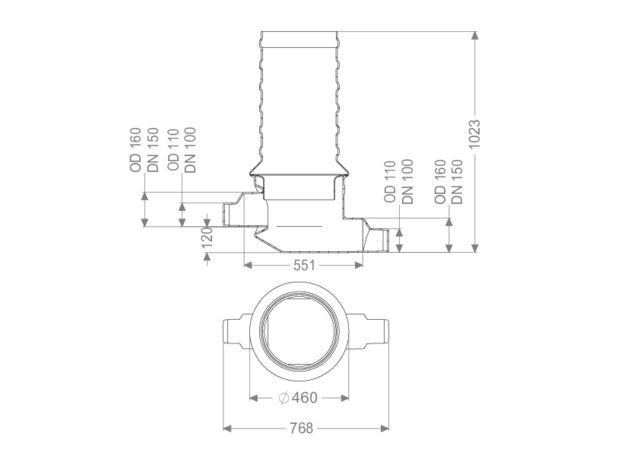

Dimensions
Net weight: 25 kg
Gross weight: 30 kg
Vertical drop between inlet and outlet: 120 mm
Installation depth: 400 - 1300 mm
Packaging dimension: length: 700 mm
Packaging dimension: width: 800 mm
Packaging dimension: height: 1350 mm
Coverage features
Type of cover: surface water resistant
Load class: B 125 (EN 124)
