SonicControl cable gland
Underground separator installation set

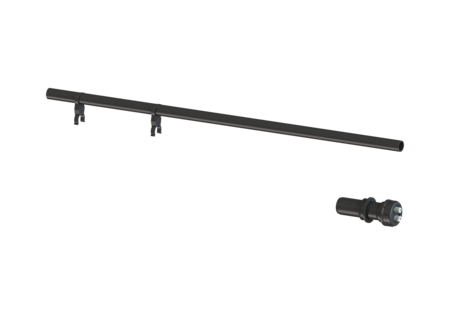

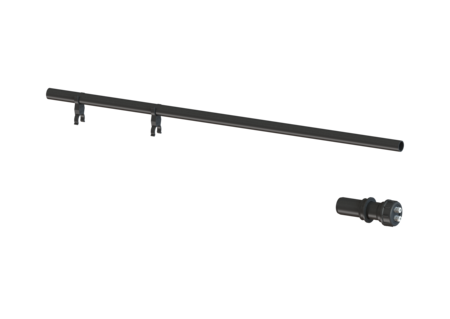

Penetration set with telescopic extension pipe, clips, seal as well as cable gland for lead-through of the sensor cable of the SonicControl layer thickness measuring device for grease separators installed in the ground. Note: On-site PE-HD cable conduit DA 50 mm, max. distance between separator and frost-free installed measuring device is 60 m.
| Item no. | 917823 |
|---|---|
| GTIN | 4026092092392 |
| Price group | 60 |
SonicControl cable gland Underground separator installation set
Penetration set with telescopic extension pipe, clips, seal as well as cable gland for lead-through of the sensor cable of the SonicControl layer thickness measuring device for grease separators installed in the ground. Note: On-site PE-HD cable conduit DA 50 mm, max. distance between separator and frost-free installed measuring device is 60 m. General characteristics Material: PE-HD Nominal size (DN): 50 Dimensions Net weight: 0,23 kg Gross weight: 0,34 kg Length: 190 mm Packaging dimension: length: 218 mm Packaging dimension: width: 218 mm Packaging dimension: height: 120 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet |
|---|
- Nominal size (DN) (nennweite):
50
