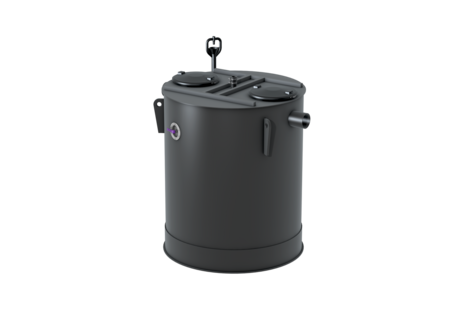

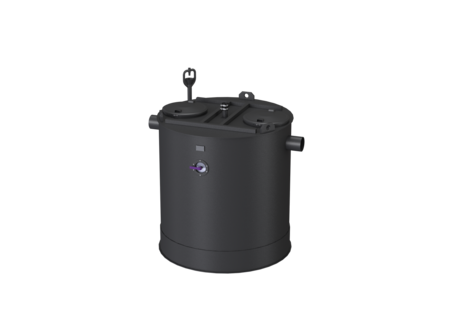

EasyClean round grease separator
free, NS 15, Direct
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and is manufactured without the need for metallic internal structural components. The collection tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has sloped sides in the base to promote fast and efficient disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for reduced-odour manual disposal. After disposal, a maximum of 3 litres residual sludge volume is left in the tank. 20 year polyethylene warranty.
- Odour-reduced disposal with the tank closed
- Low-maintenance operation
| Item no. | 93015.05/D |
|---|---|
| Price group | 60 |
EasyClean round grease separator free, NS 15, Direct
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and is manufactured without the need for metallic internal structural components. The collection tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has sloped sides in the base to promote fast and efficient disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for reduced-odour manual disposal. After disposal, a maximum of 3 litres residual sludge volume is left in the tank. 20 year polyethylene warranty. Variant Shut-off valve: yes Disposal variant: Direct Protection class motor: no Sludge bucket: no Nominal size (NS): 15 SonicControl: no Disposal system: Disposal connection Refill inlet in accordance with DIN 1988: no Type of disposal: manual Load-bearing capacity (DIN 19901): F3 General characteristics Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 350 kg Gross weight: 350 kg Set-up area, width: 1922 mm Set-up area, height: 2020 mm Set-up area, length: 2230 mm Required access area, width: 1880 mm Required access area, height: 2020 mm Required access area, length: 2230 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1550 mm Distance pipe bottom inlet to tank bottom: 1620 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 Inlet nominal size (DN): 160 mm Inlet nominal size (DN): 150 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Cover locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 2300 l Total volume: 3800 l Hose: 1500 l Storage quantity of light liquid: 600 l Control Max. permissible switching frequency: no
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Cover material (abdeckung_material):
Polymer
- Disposal system (entsorgungseinrichtung):
Disposal connection
- Nominal size (NS) (nenngroesse): 15
- Sludge bucket (schauglas): no
