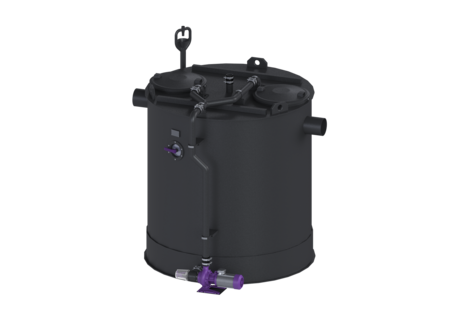

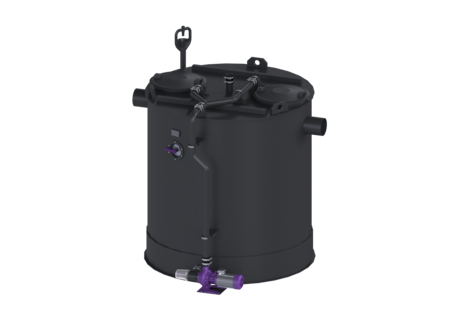

EasyClean round grease separator
free, NS 15, Mix
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and is manufactured without the need for metallic internal structural components. The collection tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has sloped sides in the base to promote fast and efficient disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix System with integrated macerating system homogenises and circulates the tank contents. Cleaning is carried out via an exterior pump which can be disconnected from the tank by a shut-off valve. A direct disposal pipe socket is available for odour-neutral manual disposal. 20 year polyethylene warranty.
- Simple control
- Low-maintenance operation
- Odour-reduced disposal with the tank closed
| Item no. | 93015.05/DS |
|---|---|
| Price group | 60 |
EasyClean round grease separator free, NS 15, Mix
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and is manufactured without the need for metallic internal structural components. The collection tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has sloped sides in the base to promote fast and efficient disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix System with integrated macerating system homogenises and circulates the tank contents. Cleaning is carried out via an exterior pump which can be disconnected from the tank by a shut-off valve. A direct disposal pipe socket is available for odour-neutral manual disposal. 20 year polyethylene warranty. Variant Shut-off valve: yes Disposal variant: Mix Protection class motor: yes Sludge bucket: no Nominal size (NS): 15 SonicControl: no Type of disposal: manual Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Dimensions Net weight: 710 kg Gross weight: 710 kg Set-up area, width: 1922 mm Set-up area, height: 2020 mm Set-up area, length: 2230 mm Required access area, width: 1880 mm Required access area, height: 2020 mm Required access area, length: 2230 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1550 mm Distance pipe bottom inlet to tank bottom: 1620 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 Inlet nominal size (DN): 200 mm Inlet nominal size (DN): 200 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Cover locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 2300 l Hose: 1500 l Control Max. permissible switching frequency: no
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Material (material):
PE
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
free-standing installation
- Protection class motor (schredder_mix_system):
yes
- Nominal size (NS) (nenngroesse): 15
- Sludge bucket (schauglas): no
