Grease separator EasyClean free
NS 40, Mix
KESSEL Grease separator EasyClean free, disposal, nominal size 40, control unit yes, free-standing installation, type of disposal manual cleaning system, no, no, total volume 9000 l
- Simple control
- Low-maintenance operation
- Odour-reduced disposal with the tank closed

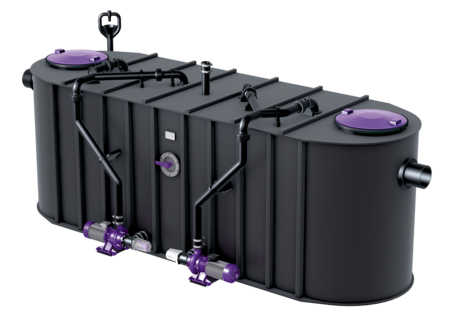

Item no. | 93040.01/DS |
---|---|
GTIN | 4026092103753 |
Price group | 60 |
Grease separator EasyClean free NS 40, Mix
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has slopes in the tank base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix-System with integrated macerating system is responsible for homogenising and circulating the tank contents. Cleaning is carried out by an exterior pump which can be disconnected from the tank by a shut-off valve. A direct disposal pipe socket is available for odour-neutral manual disposal. 20 year polyethylene warranty. Variant Shut-off valve: yes Shredder-Mix-System: yes Sludge bucket: no Nominal size (NS): 40 SonicControl: no Disposal system: Disposal connection Refill inlet in accordance with DIN 1988: yes Type of disposal: manual cleaning system Water supply: 1 screw-type valve 1" Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Set-up area, length: 6680 mm Set-up area, width: 1870 mm Set-up area, height: 1662 mm Required access area, length: 6200 mm Required access area, width: 1600 mm Required access area, height: 1662 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1130 mm Distance pipe bottom inlet to tank bottom: 1200 mm Outlet nominal size (OD): 250 mm Outlet nominal size (DN): 250 mm Inlet nominal size (OD): 250 mm Inlet nominal size (DN): 250 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 5000 l Total volume: 9000 l Contents of sludge trap: 4000 l Storage quantity of grease: 1600 l Pumping device Pump: SPF 300 KE 2.0 Number of pumps: 2 Weight, pump: 44 kg Connection type: Direct connection Rated current: 6,2 A Length of mains cable for pump: 5 m Protection class: I Protection class (pump): IP 55 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Control Control unit: yes Type of fuse required (RCD): 30 mA Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Rated current: 6,2 A
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Connect Pro module LTE f. control unit w. Connect Pro interface | 72300 | Show | |
Sampling system DN 250, horizontal | 915884 | Show | |
Layer thickness measuring device SonicControl, for grease separators | 917821 | Show | |
Cable extension 10 m, for SonicControl grease separator | 917871 | Show | |
Cable extension 20 m, for SonicControl grease separator | 917872 | Show | |
Cable extension 30 m, for SonicControl grease separator | 917873 | Show |
Title | Item no. |
---|
Declaration of Performance | |
---|---|
Declaration of Conformity |
- Material (material): PE
- Cover material (abdeckung_material): Polymer
- Disposal system (entsorgungseinrichtung): Disposal connection
- Installation situation (einbausituation): free-standing installation
- CE marking (ce_kennzeichnung): yes
- Shredder-Mix-System (schredder_mix_system): yes
- Nominal size (NS) (nenngroesse): 40
- Refill inlet in accordance with DIN 1988 (fuelleinrichtung): yes
- Set-up area, width (aufstellflaeche_breite): 1,870 mm
- Set-up area, length (aufstellflaeche_laenge): 6,680 mm
- Control unit (schaltgeraet): yes
