Grease separator EasyClean free

NS 40, Auto Mix & Pump

KESSEL Grease separator EasyClean free, disposal Auto Mix & Pump, Set-up area, width 1870 mm nominal size 40, Separator capacity 5000 l, control unit yes, free-standing installation, type of disposal automatic disposal and cleaning system, no

  • Clean and odour-free disposal and cleaning
  • Customisation possible through control unit
  • Clean and odour-free disposal and cleaning
Item no. 93040.01/PVS
GTIN 4026092103784
Price group 60

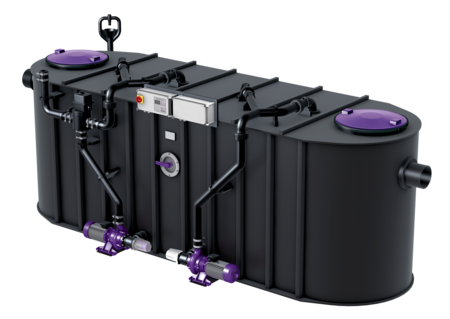

Grease separator EasyClean free NS 40, Auto Mix & Pump
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has slopes in the tank base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix-System with integrated macerating system is responsible for homogenising and circulating the tank contents. Cleaning and odour-neutral disposal takes place via an exterior pump with 2-way valve and actuator which can be disconnected from the tank by a shut-off valve. The fully automatic program run is controlled by a user-friendly control unit with multi-line display that can be integrated into the building management system through a potential-free contact. Cleaning and disposal can be started remotely using the remote control, which is available as an option. Thanks to the customisable cleaning program with fast-selection function, cleaning can be adapted to the local circumstances as required. Observance of the Drinking Water Hygiene Directive can be guaranteed through the fully automatic rinsing of the drinking water pipes. 20 year polyethylene warranty. Variant Shut-off valve: yes Disposal variant: Auto Mix & Pump Shredder-Mix-System: yes Sludge bucket: yes Nominal size (NS): 40 SonicControl: no Disposal system: Disposal pump Refill inlet in accordance with DIN 1988: yes Type of disposal: automatic disposal and cleaning system Water supply: 2 solenoid valves 1" Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 675 kg Gross weight: 675 kg Set-up area, length: 6680 mm Set-up area, width: 1870 mm Set-up area, height: 1662 mm Required access area, length: 6200 mm Required access area, width: 1600 mm Required access area, height: 1662 mm Packaging dimension: length: 6200 mm Packaging dimension: width: 1600 mm Packaging dimension: height: 1662 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1130 mm Distance pipe bottom inlet to tank bottom: 1200 mm Outlet nominal size (OD): 250 mm Outlet nominal size (DN): 250 mm Inlet nominal size (OD): 250 mm Inlet nominal size (DN): 250 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 5000 l Total volume: 4000 l Contents of sludge trap: 4000 l Storage quantity of grease: 1600 l Pumping device Pump: SPF 300 KE 2.0 Number of pumps: 2 Weight, pump: 44 kg Connection type: Direct connection Rated current: 6,2 A Length of mains cable for pump: 5 m Protection class (pump): IP 55 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Control Control unit: yes Motor protection switch: yes Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: no USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: no Self-diagnosis system (SDS): yes Rated current: 6,2 A
  Title Item no.
  Title Item no.
  Title Item no.
Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
Sampling system DN 250, horizontal 915884 Show
Layer thickness measuring device SonicControl, for grease separators 917821 Show
Cable extension 10 m, for SonicControl grease separator 917871 Show
Cable extension 20 m, for SonicControl grease separator 917872 Show
Cable extension 30 m, for SonicControl grease separator 917873 Show
  Title Item no.
Test Reports and Certificates
Declaration of Performance
Declaration of Conformity
  • Disposal variant (entsorgungsvariante): Auto Mix & Pump
  • Control unit (schaltgeraet): yes
  • Material (material): PE
  • Cover material (abdeckung_material): Polymer
  • Disposal system (entsorgungseinrichtung): Disposal pump
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Shredder-Mix-System (schredder_mix_system): yes
  • Nominal size (NS) (nenngroesse): 40
  • Sludge bucket (schauglas): yes
  • Refill inlet in accordance with DIN 1988 (fuelleinrichtung): yes
  • Set-up area, width (aufstellflaeche_breite): 1,870  mm
  • Set-up area, length (aufstellflaeche_laenge): 6,680  mm
