Grease separator EasyClean free
NS 50, Direct
KESSEL Grease separator EasyClean free, disposal Direct, nominal size 50, tightness odour-tight, locking Quick-release closure
- Low-maintenance operation
- Odour-reduced disposal with the tank closed
Item no. | 93050.01/D |
---|---|
GTIN | 4026092103807 |
Price group | 60 |
Grease separator EasyClean free NS 50, Direct

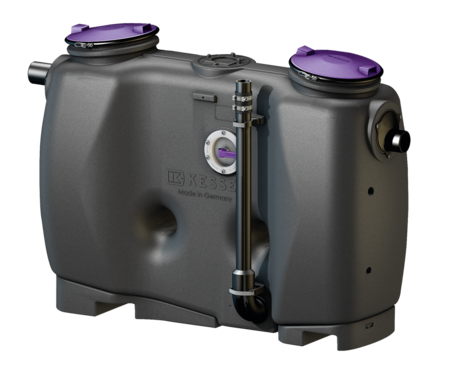

The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has slopes in the tank base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for odour-reduced manual disposal. 20 year polyethylene warranty. Variant Disposal variant: Direct Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 50 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Delivery state: Installation-ready (connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Set-up area, length: 6680 mm Set-up area, width: 1800 mm Set-up area, height: 1882 mm Required access area, length: 6200 mm Required access area, width: 1800 mm Required access area, height: 1882 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1350 mm Distance pipe bottom inlet to tank bottom: 1420 mm Outlet nominal size (OD): 250 mm Outlet nominal size (DN): 250 mm Inlet nominal size (OD): 250 mm Inlet nominal size (DN): 250 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 6200 l Total volume: 11200 l Contents of sludge trap: 5000 l Storage quantity of grease: 2240 l Control Control unit: no
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Test Reports and Certificates | |
---|---|
Declaration of Performance | |
Declaration of Conformity |
- Material (material): PE
- Cover material (abdeckung_material): Polymer
- CE marking (ce_kennzeichnung): yes
- Nominal size (NS) (nenngroesse): 50
- Inlet nominal size (DN) (zulauf_nennweite_dn): 250 mm
- Outlet nominal size (DN) (auslauf_nennweite_dn): 250 mm
